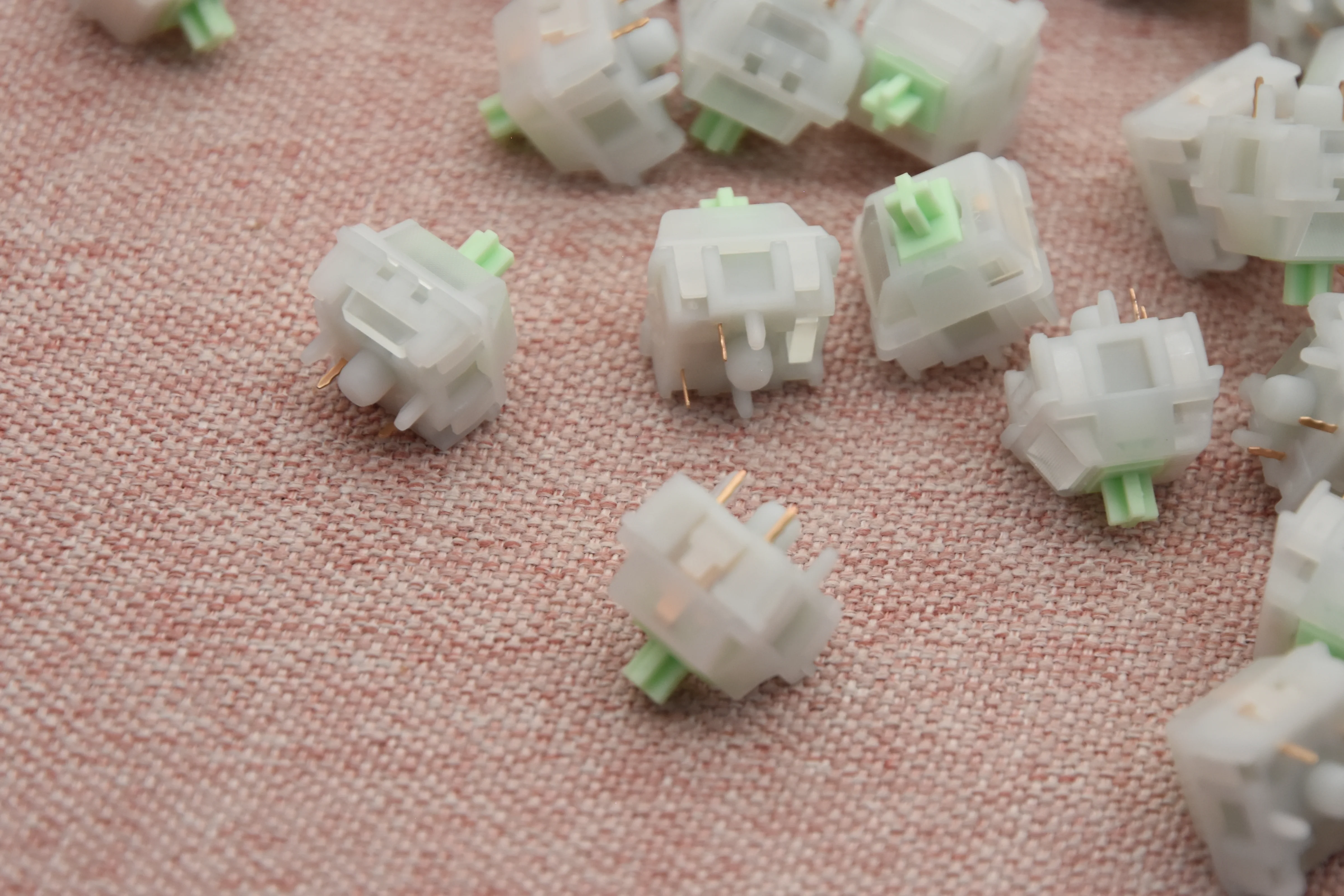

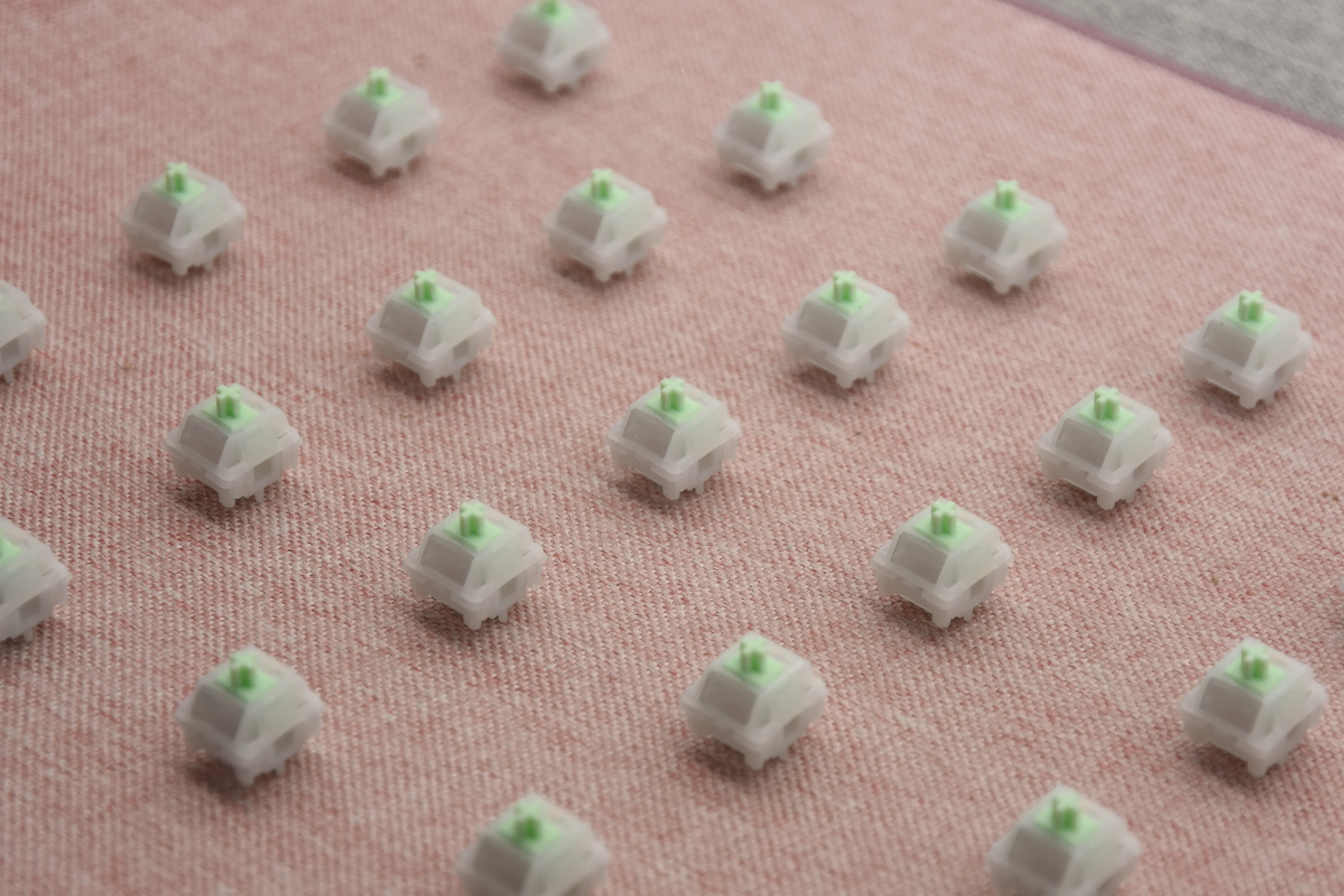

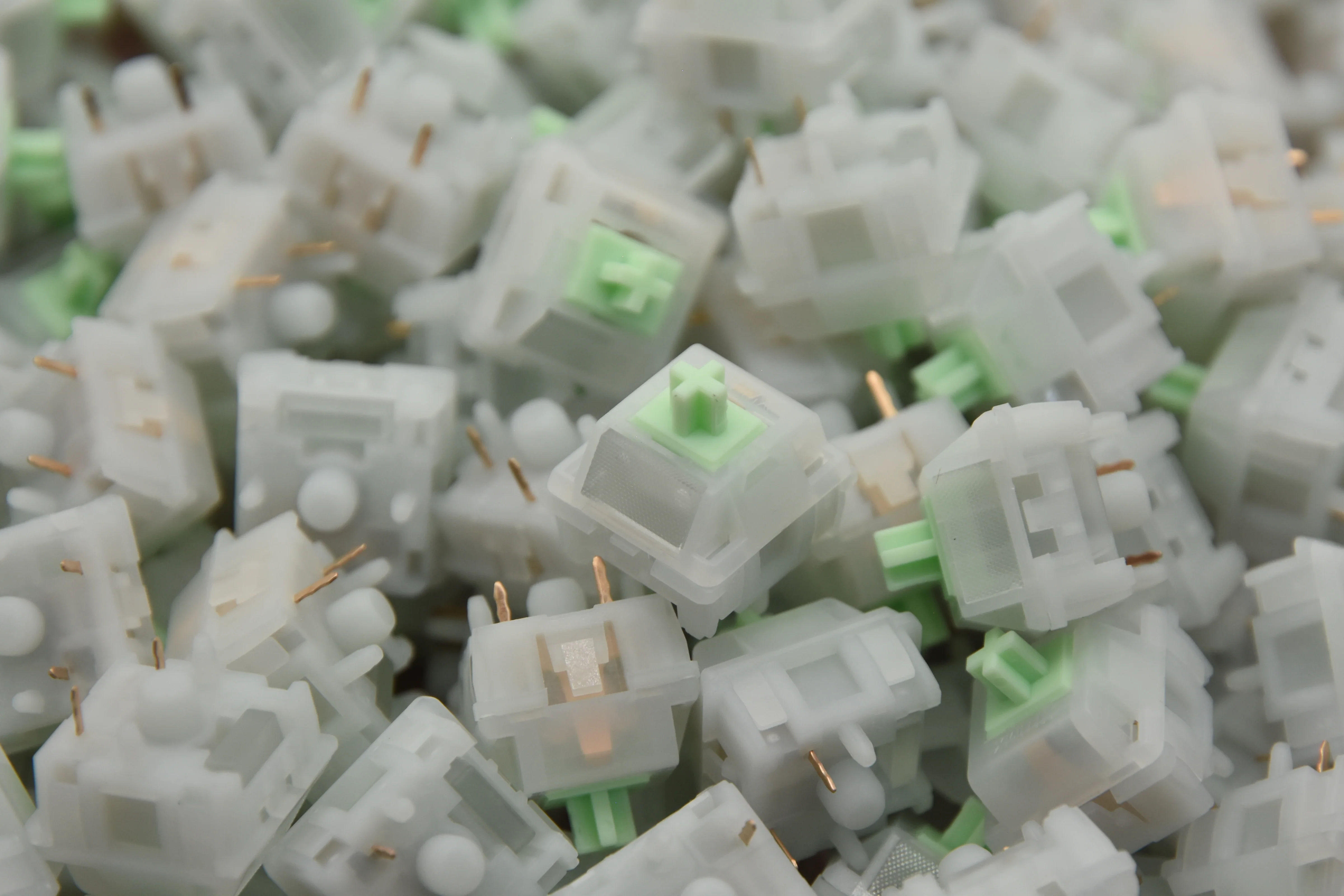

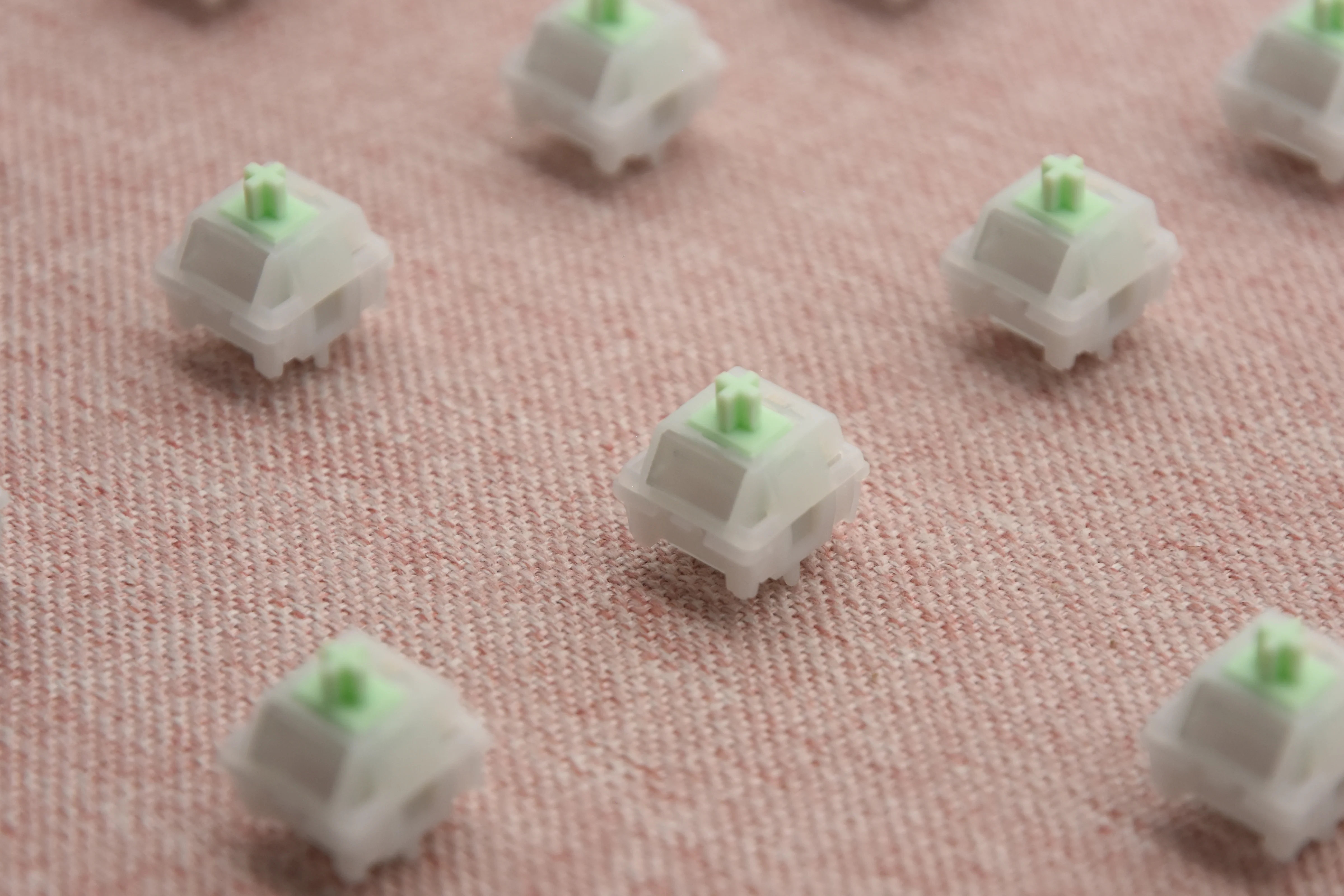

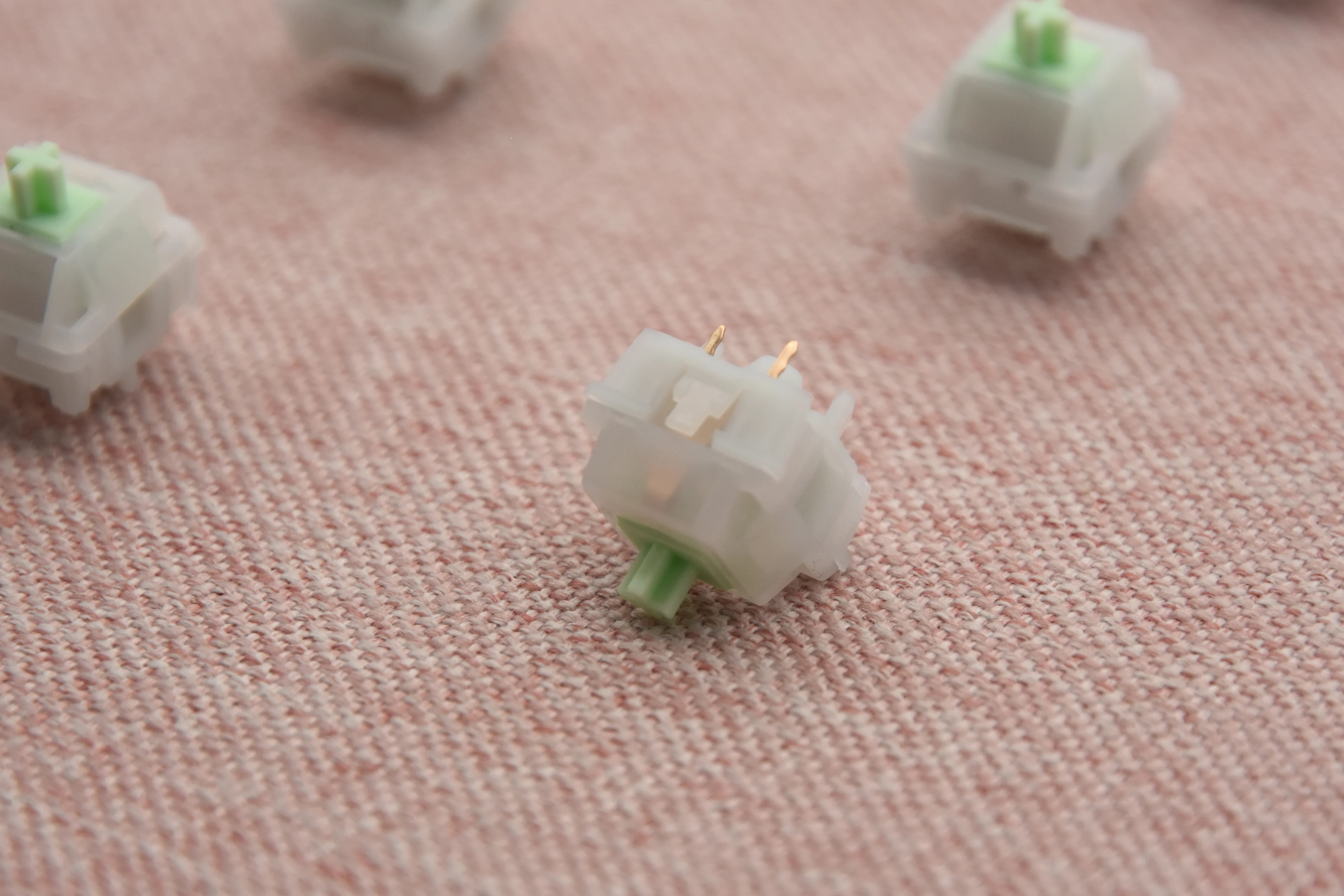

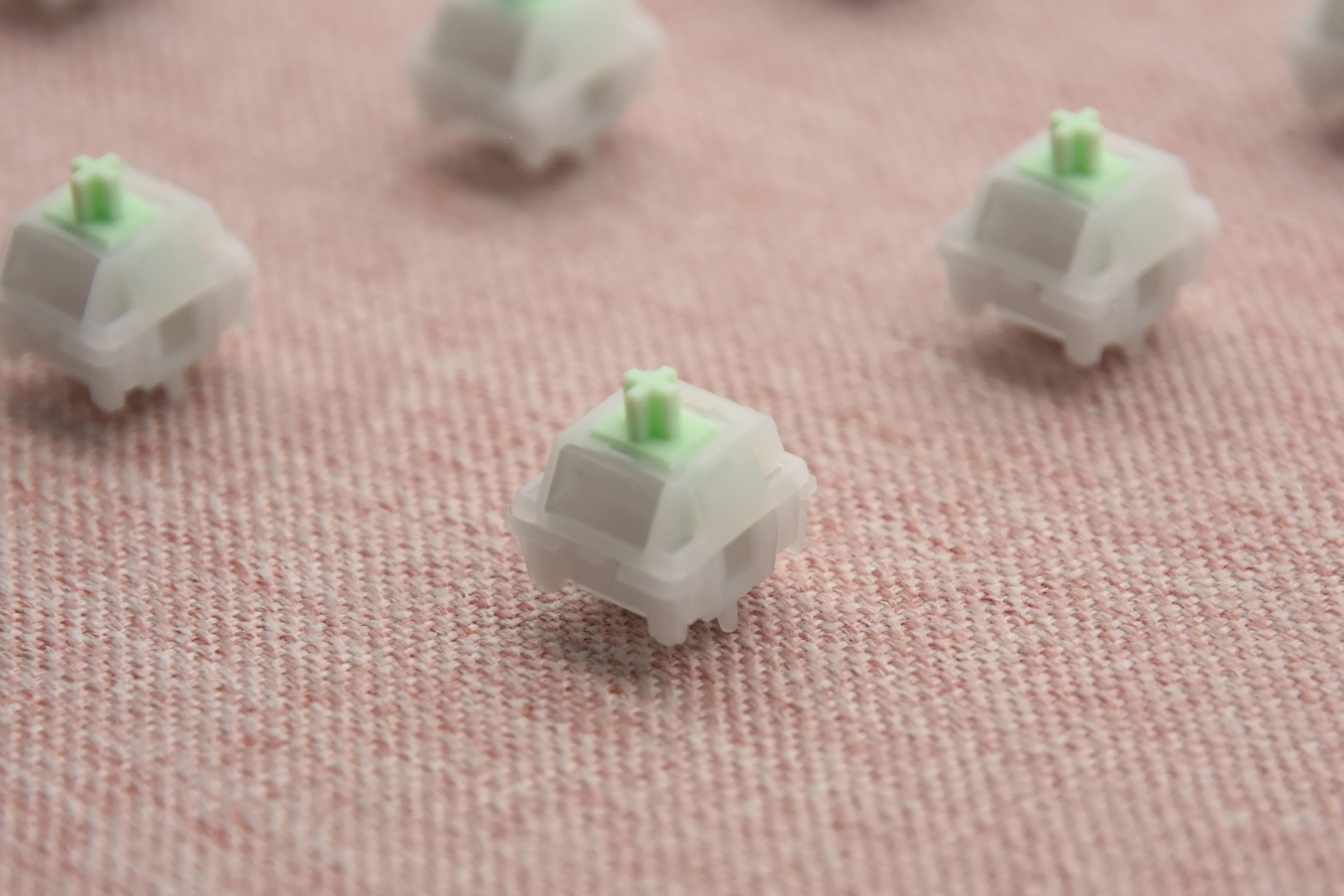

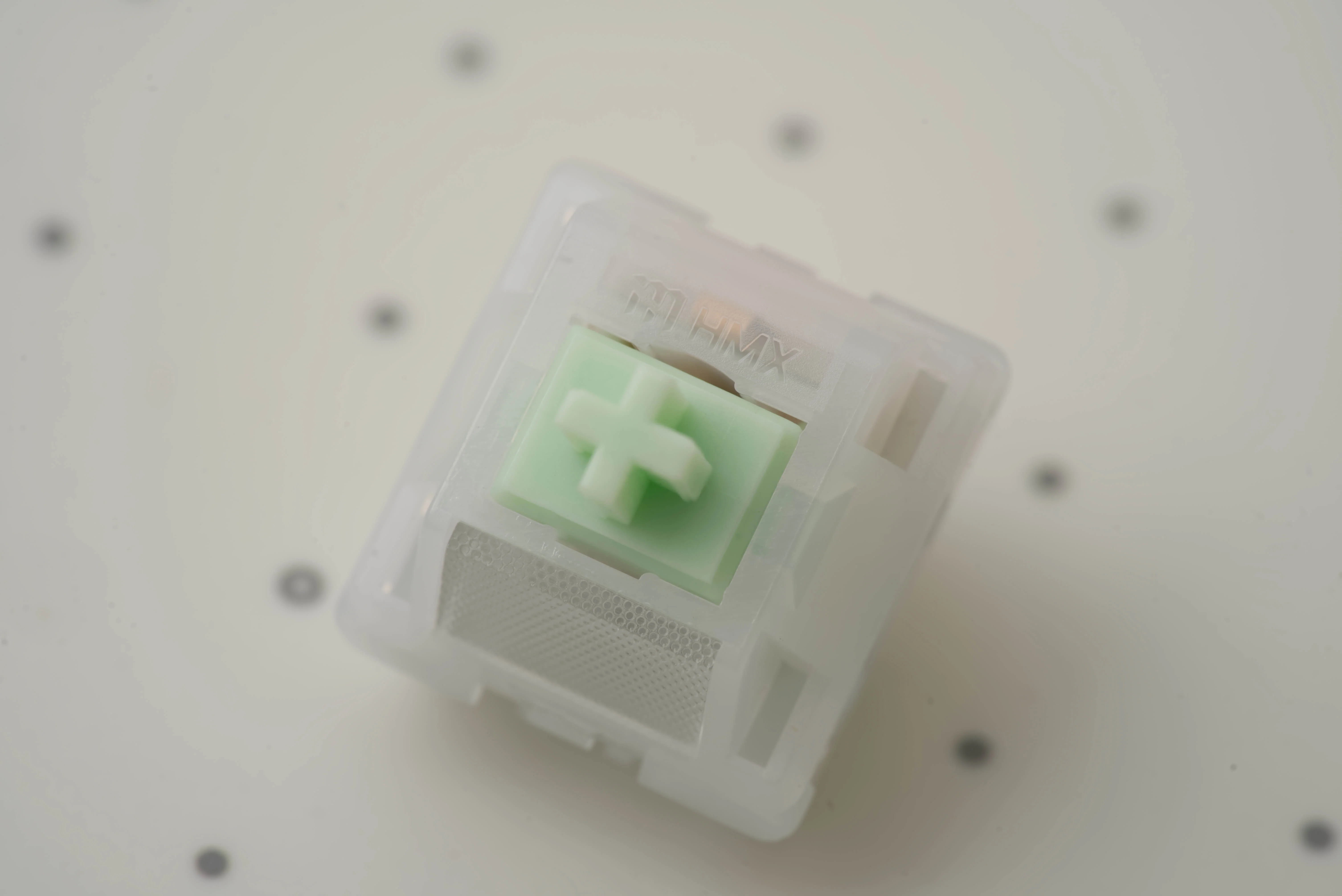

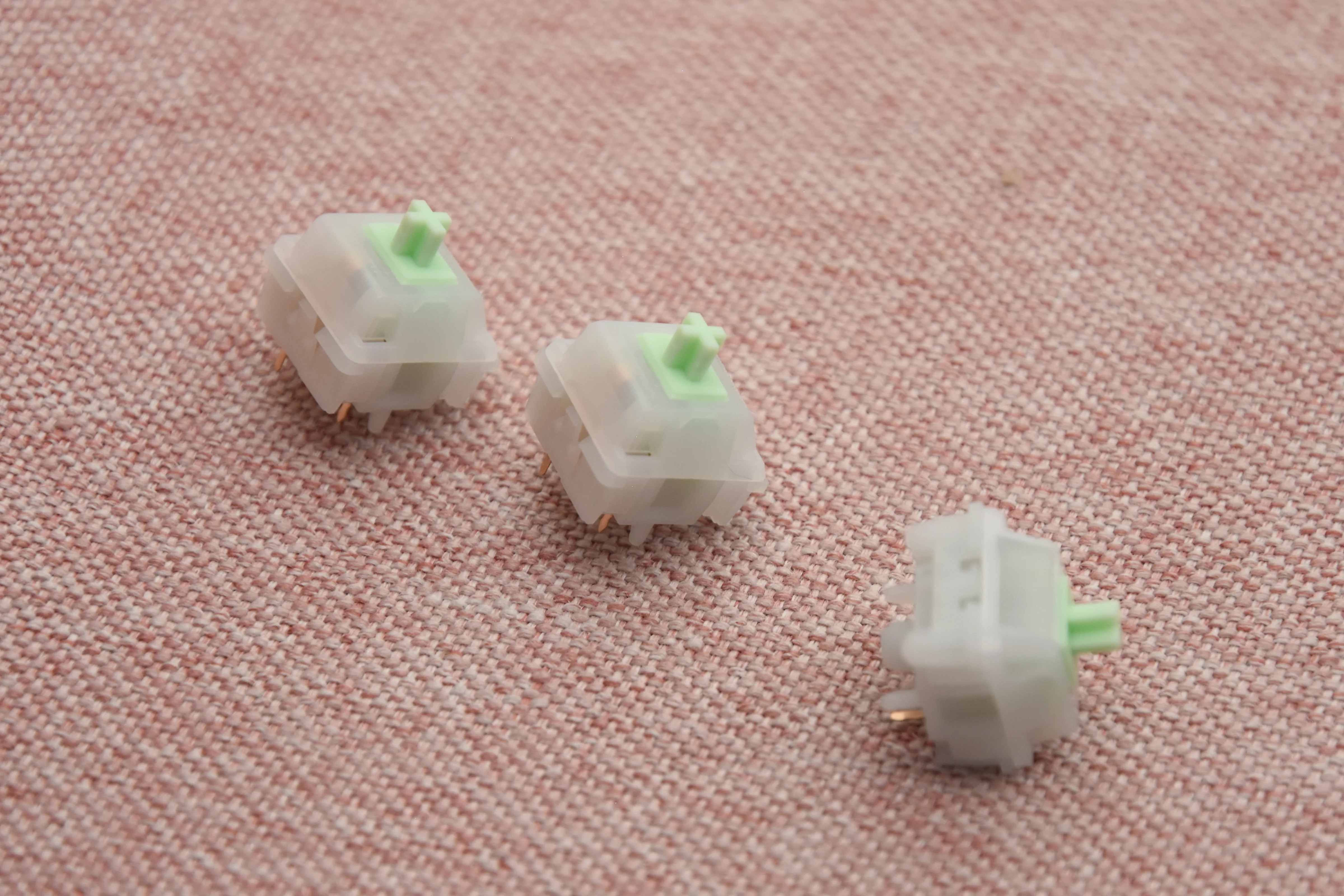

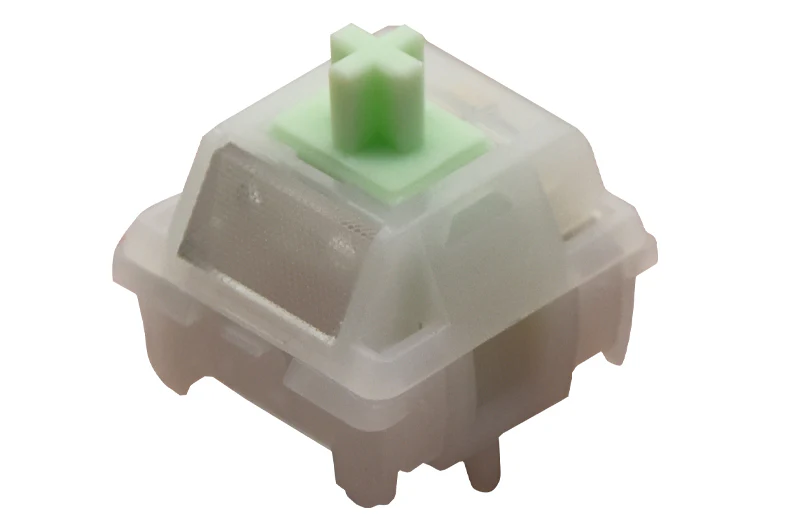

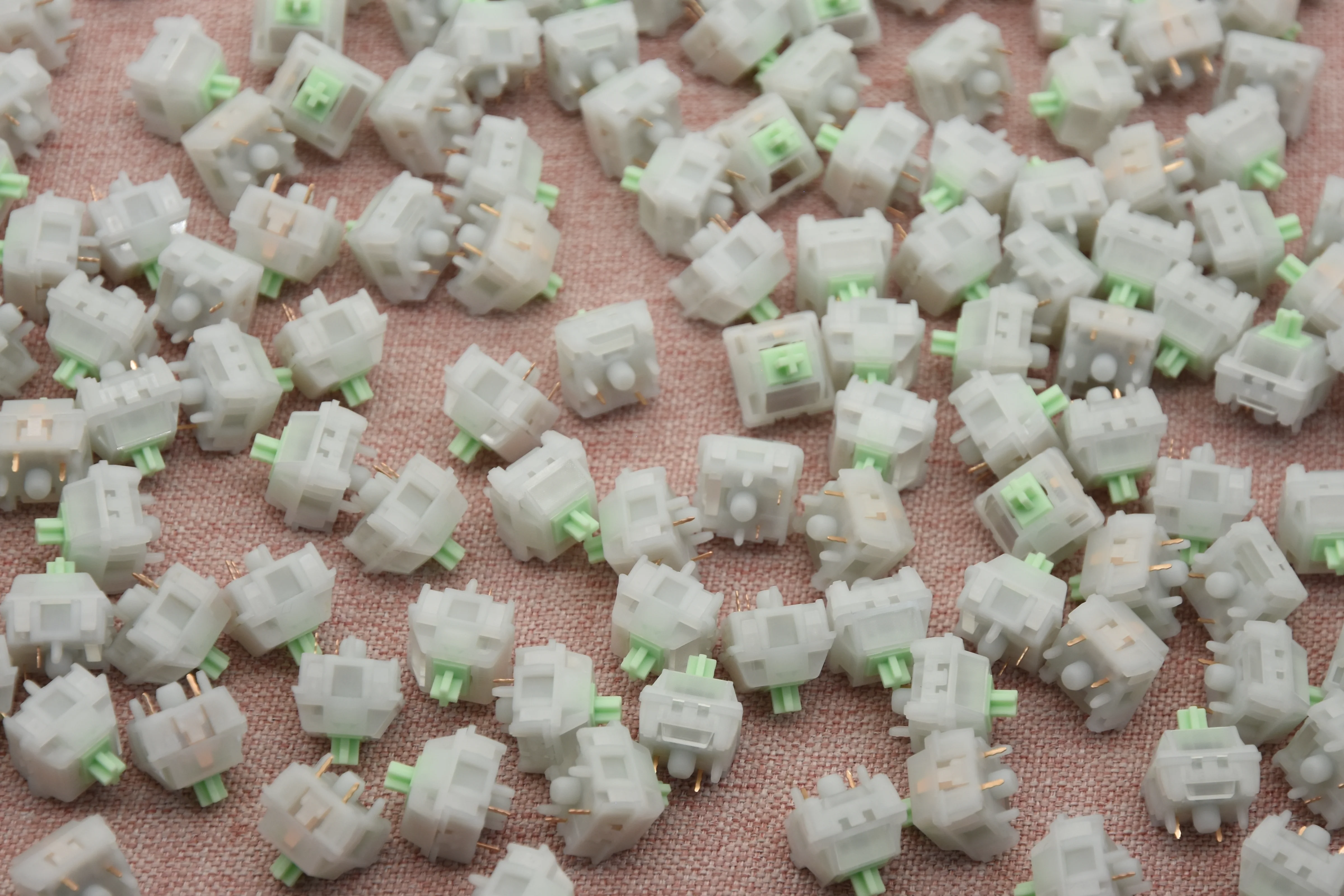

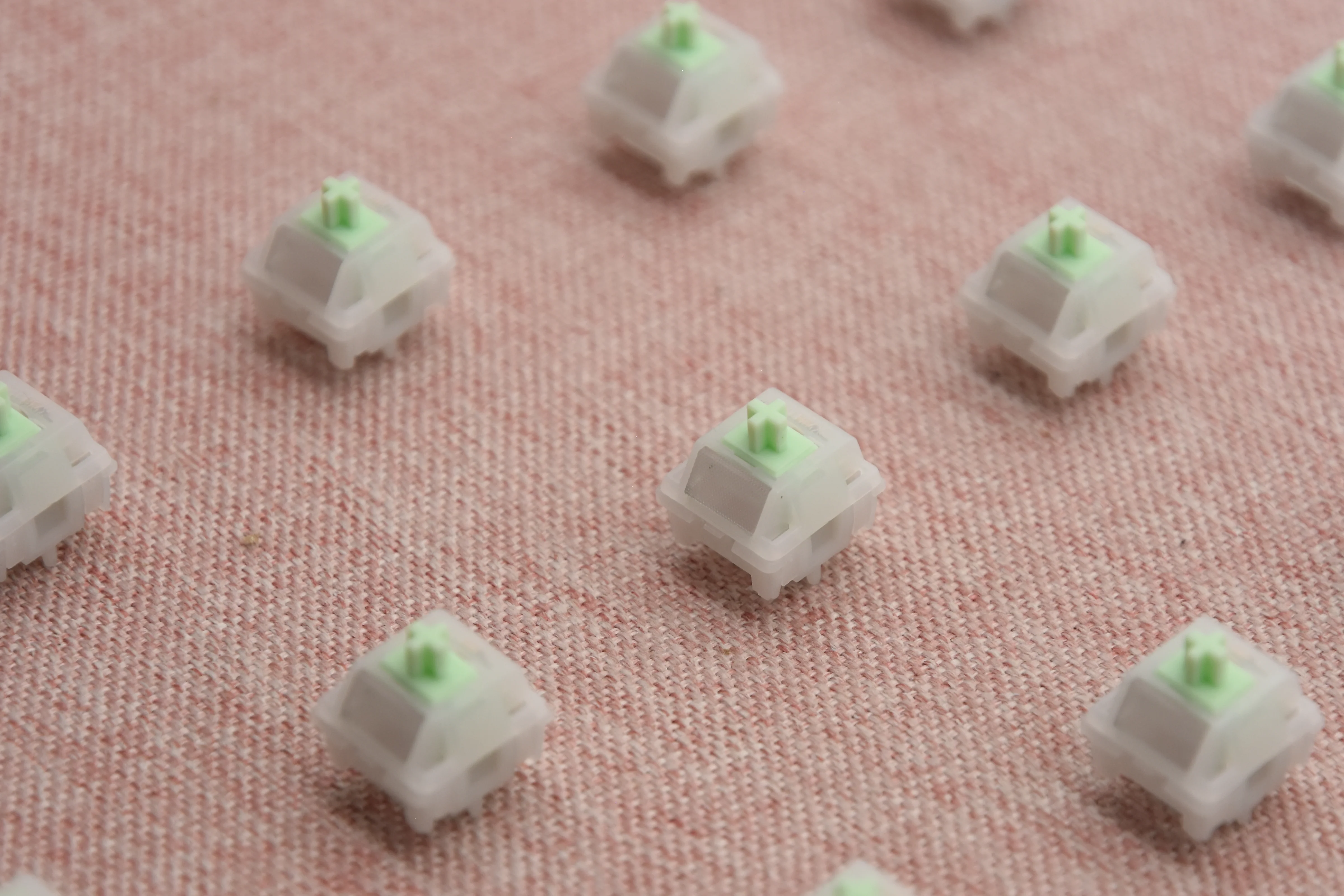

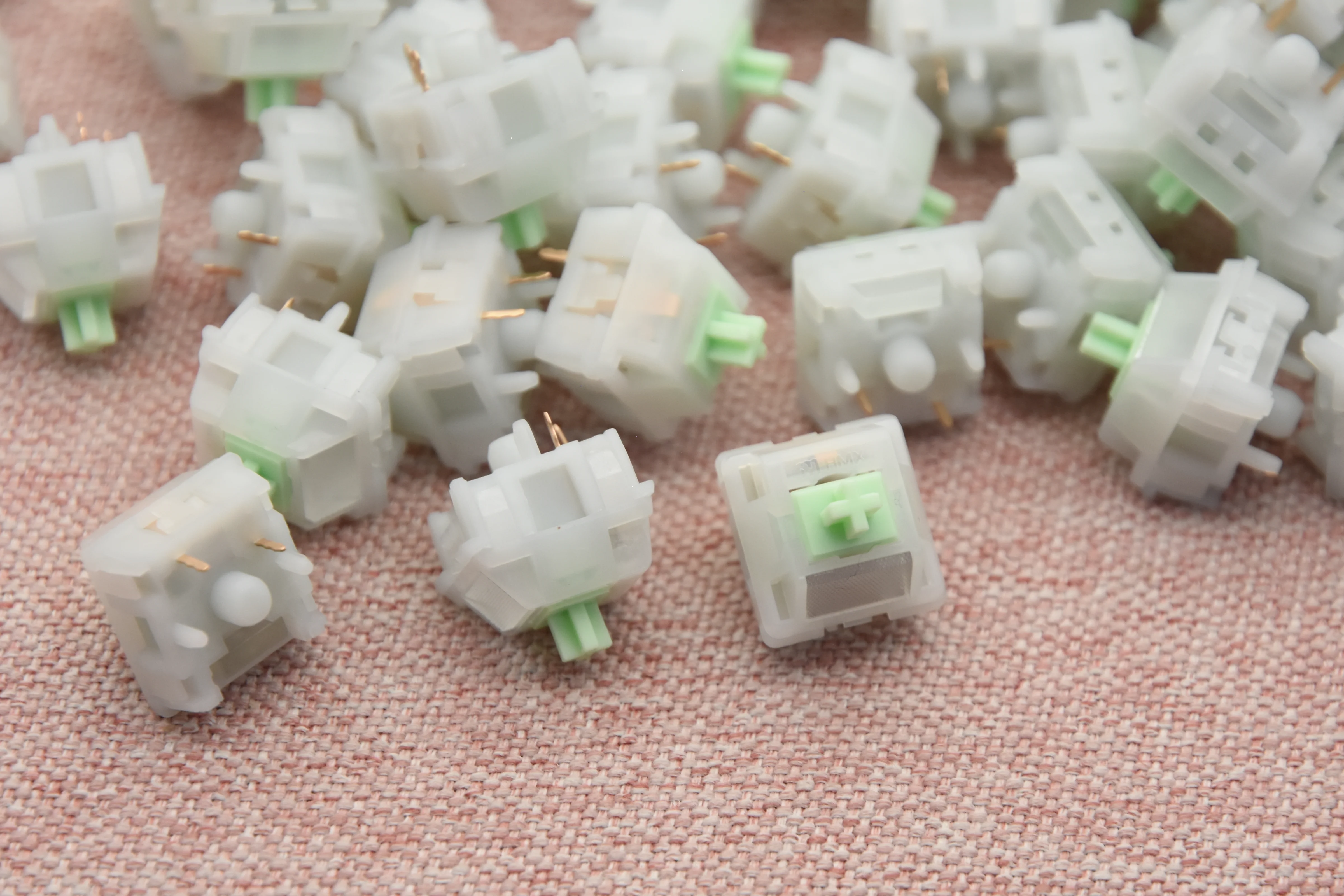

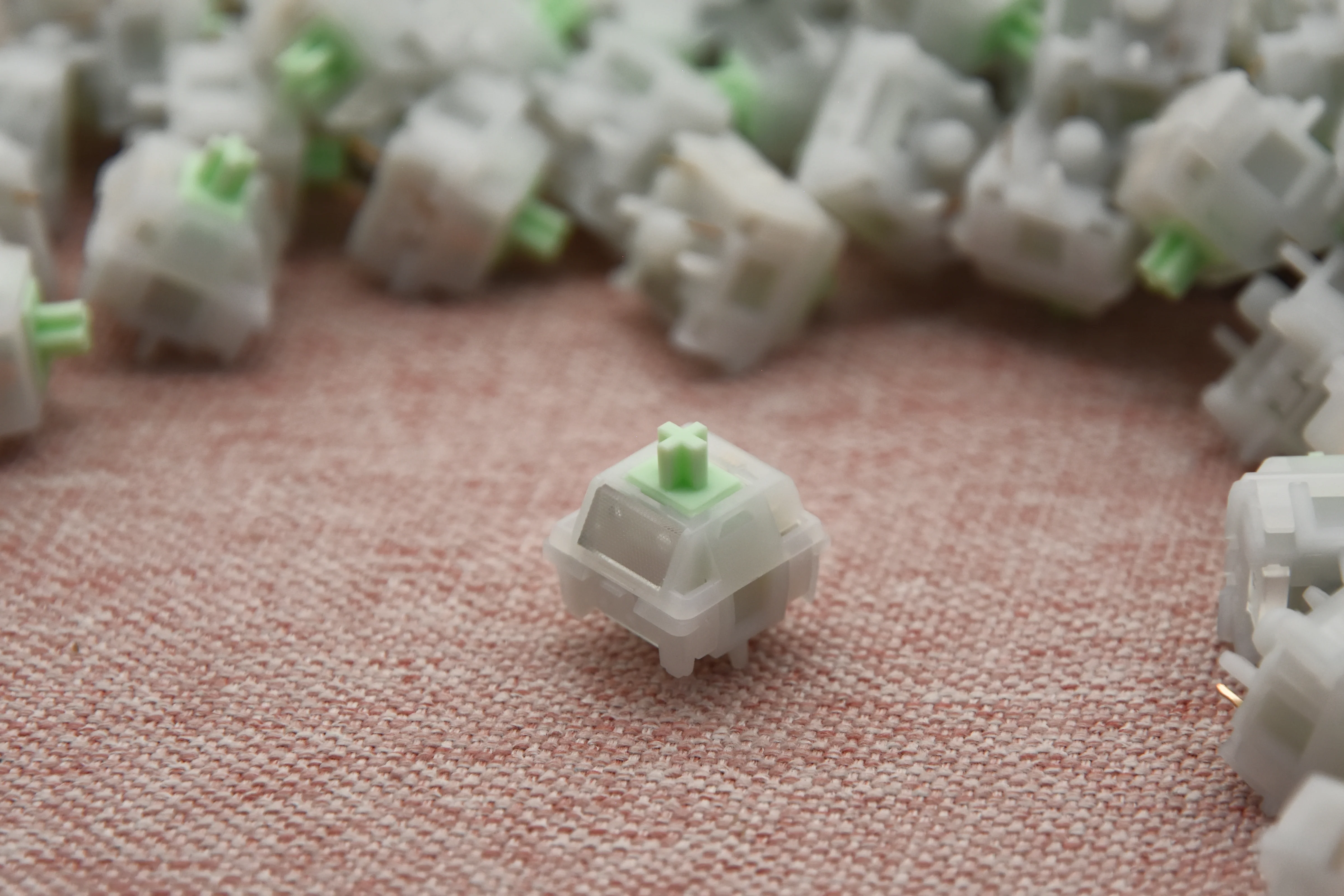

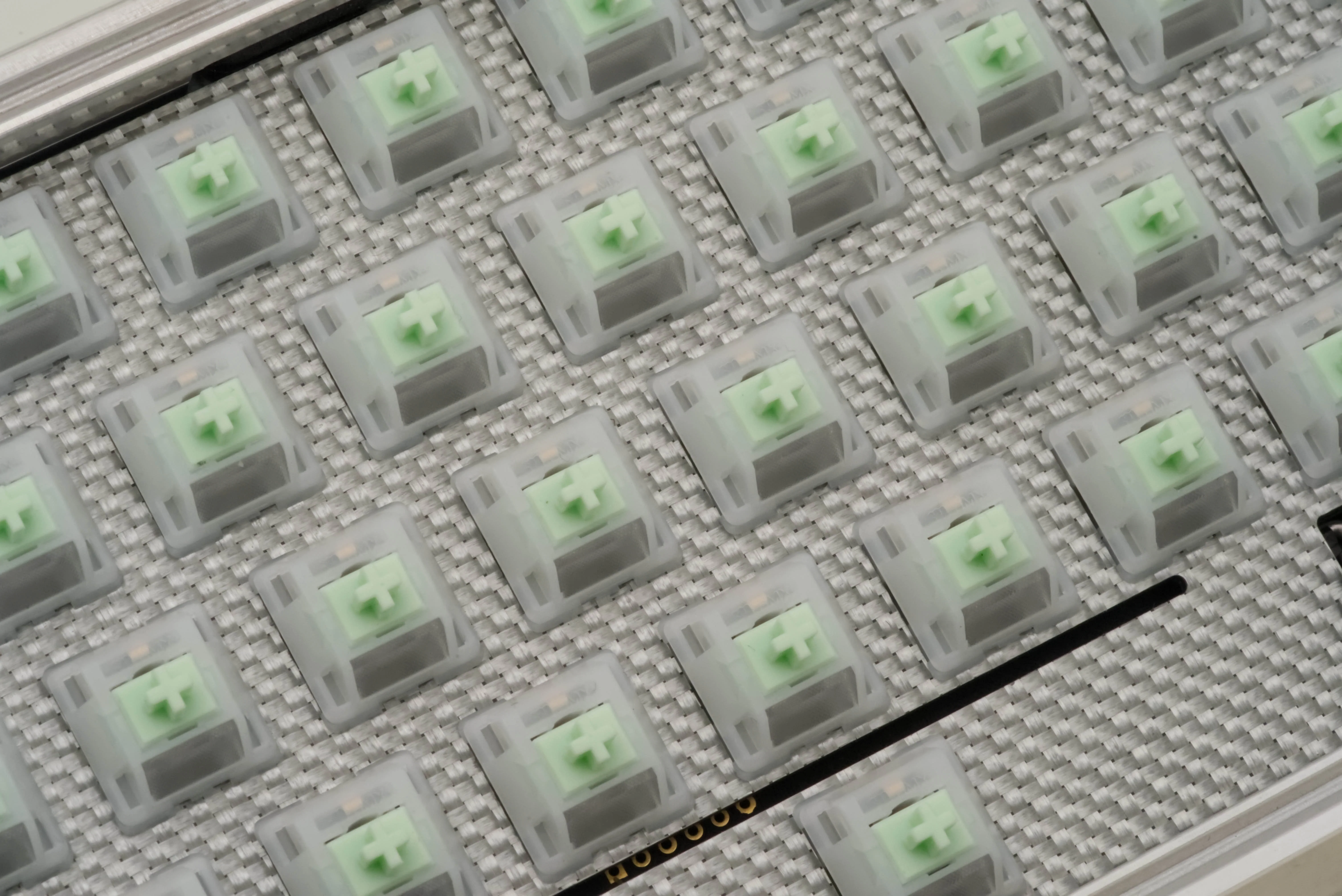

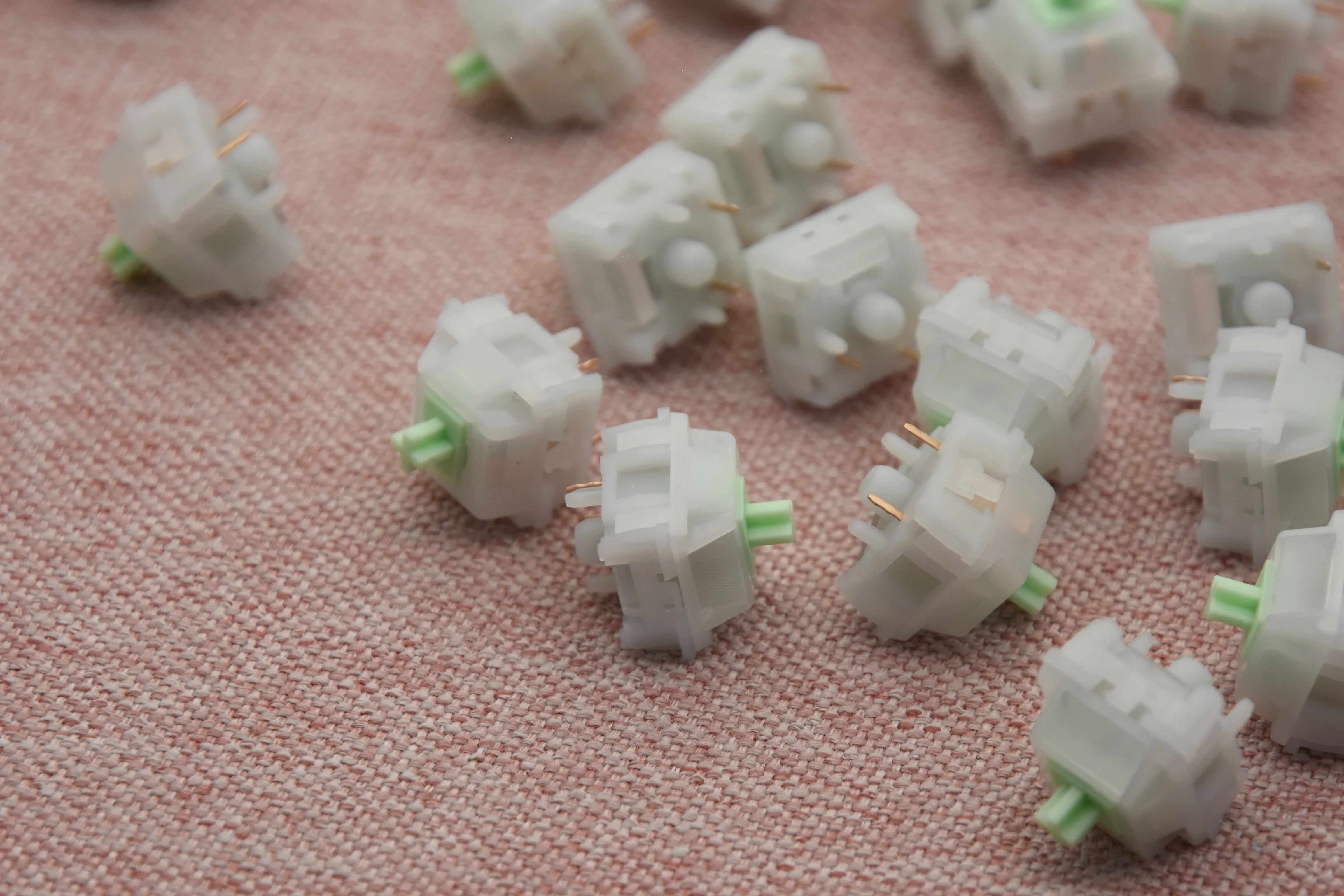

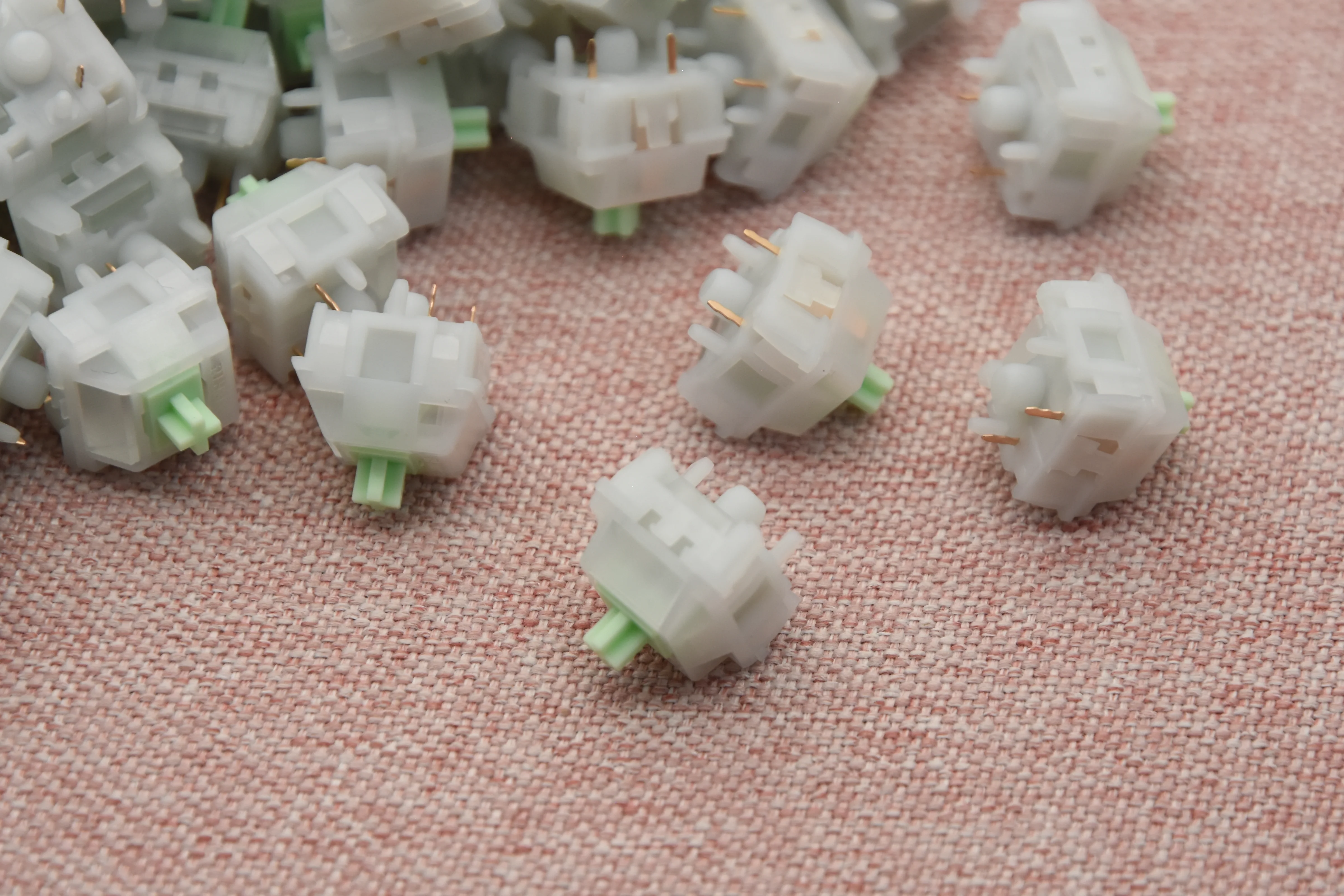

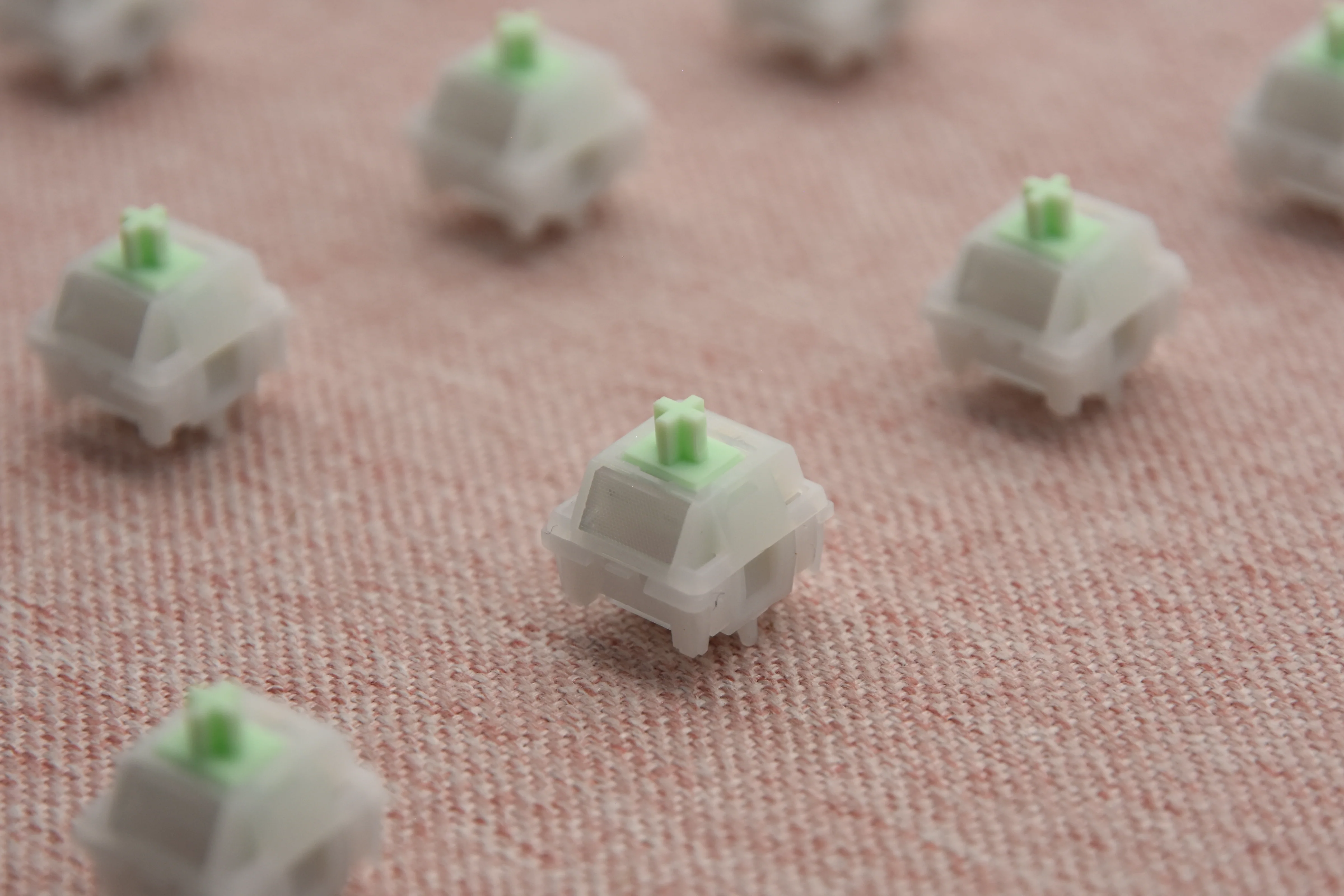

HMX JADE Tactile Switch

The HMX Jade tactile switch is the first HMX tactile switch that uses the T2 material for its stem. Unlike the other already well-known HMX tactiles such as Retro J, Cilantro, Firecrackers, etc., Jade uses a fairly softer stem to dial down the overall pitch and volume. The T2 stem and PA12 top housing also improves the overall smoothness of the switch by quite a bit, making them one of the smoothest HMX tactile switches.

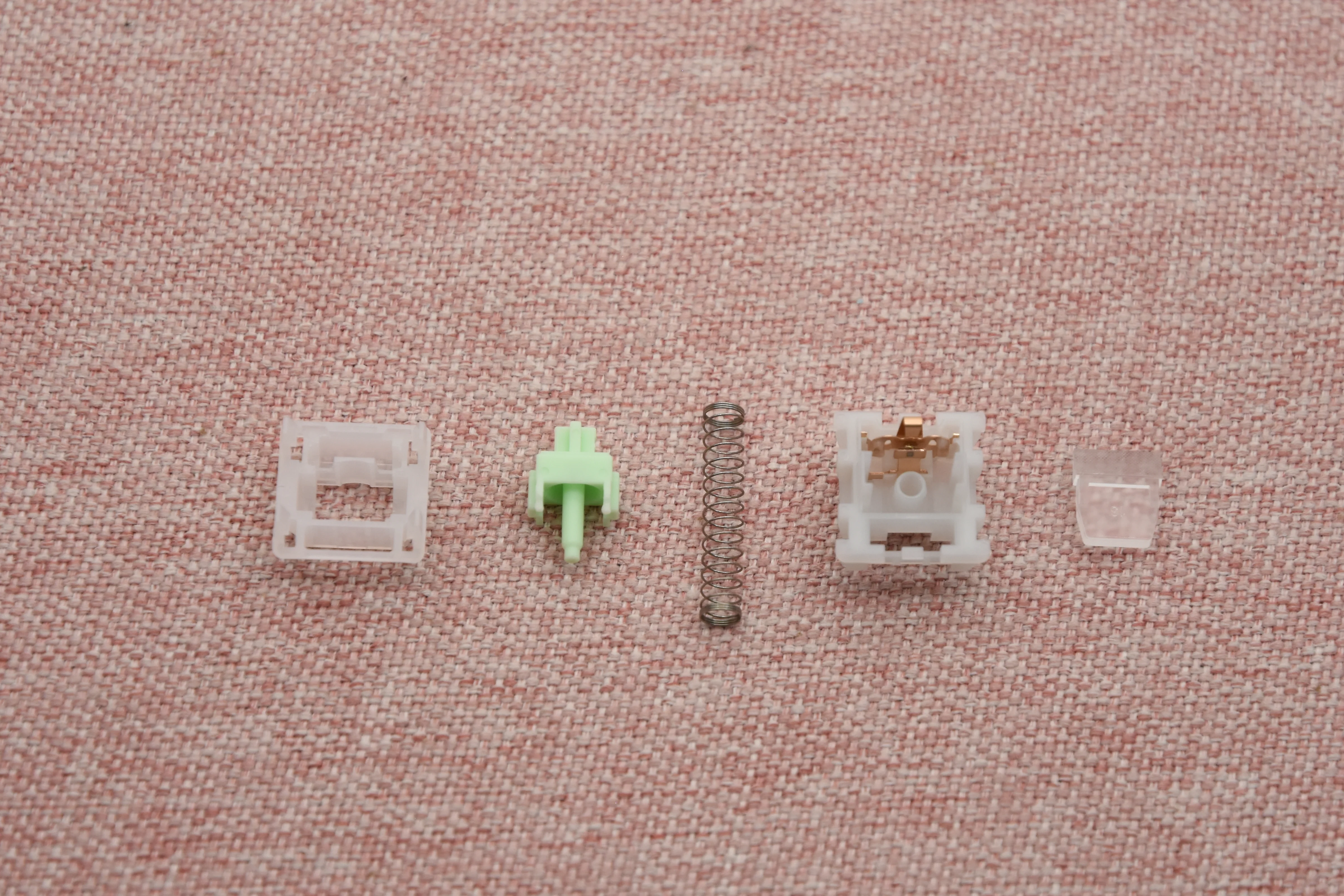

Specs:

1 quantity = 10 switches

Switch Type: Tactile

Designer: WJBY Studio

Mold: New

Manufacturer: HMX

Stem material: T2

Top Housing: PA12

Bottom Housing: P4

Operating Force:  50±2g

Bottom-out Force: 58±2g

Pre-travel: 2.3mm

Total Travel: 3.1±0.2mm

Spring: 20mm KOS single-stage extended

Factory Lubed: Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film.
