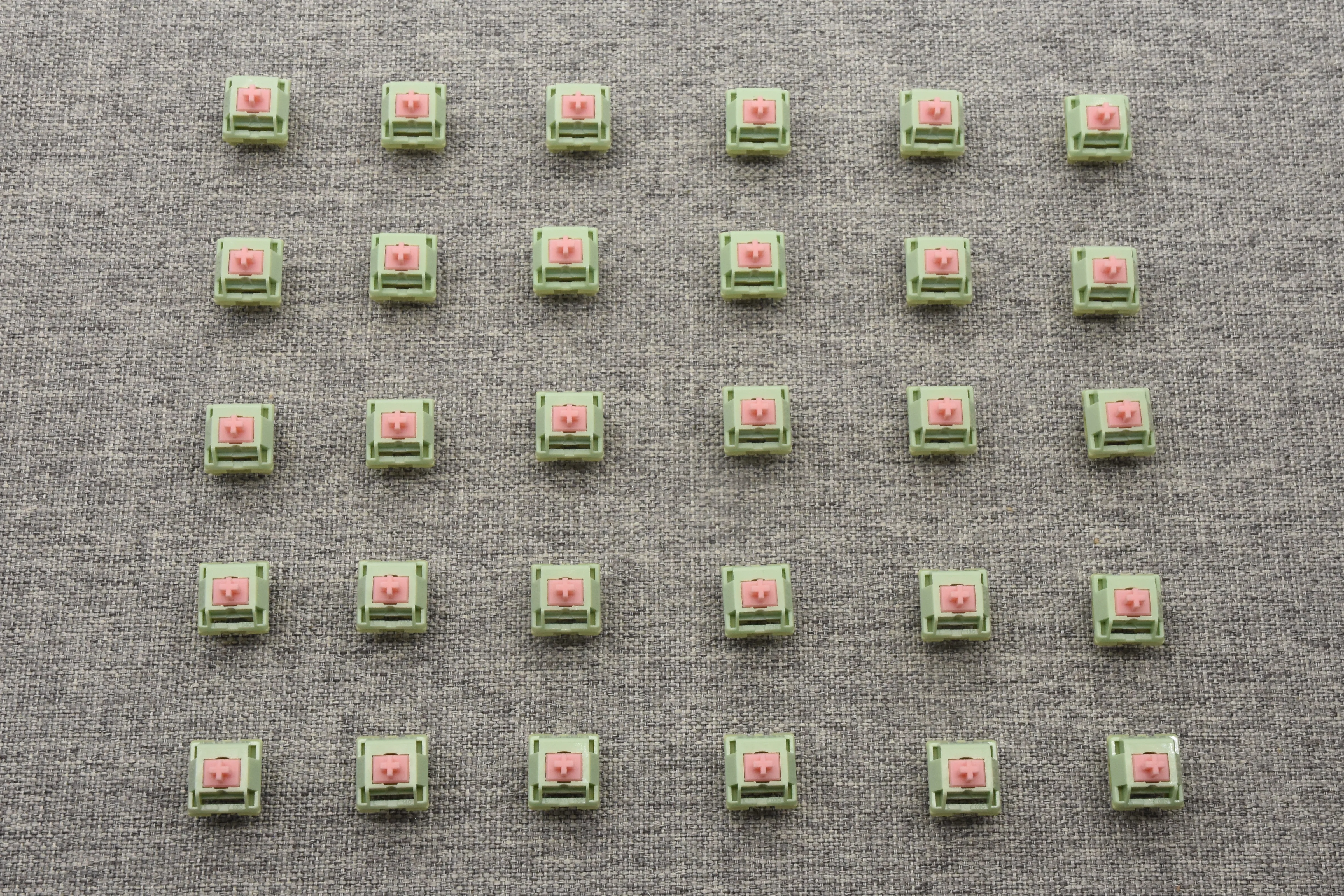

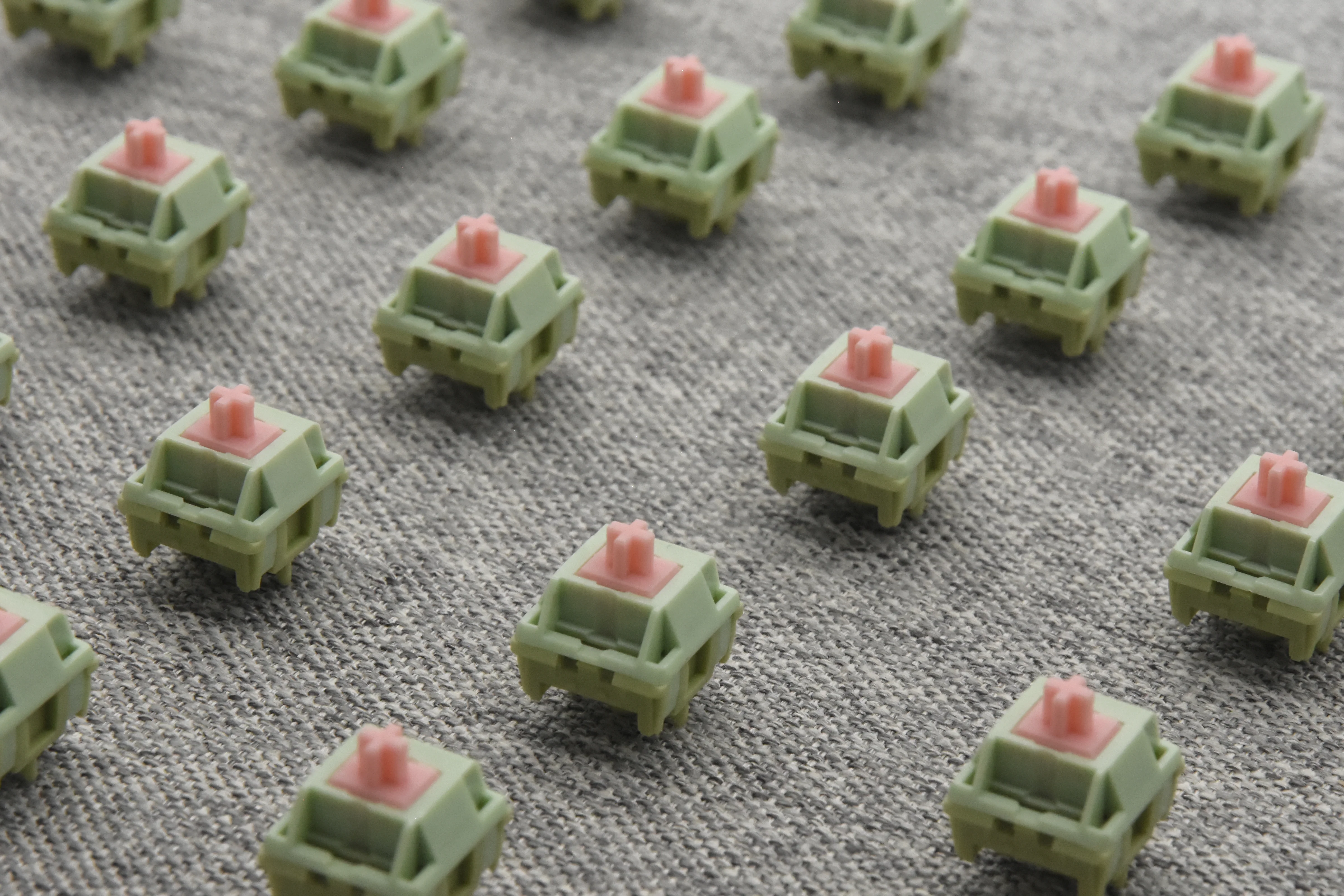

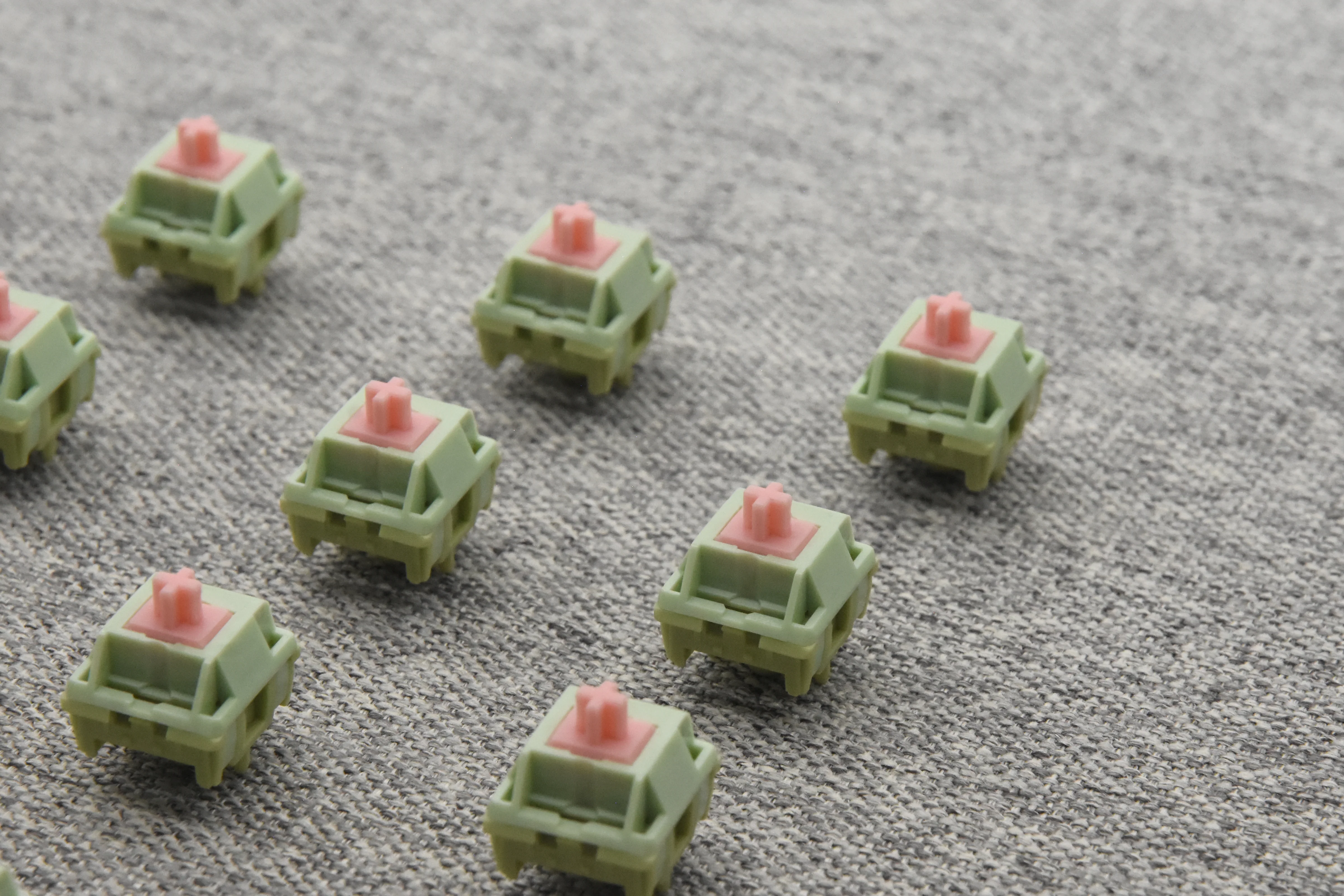

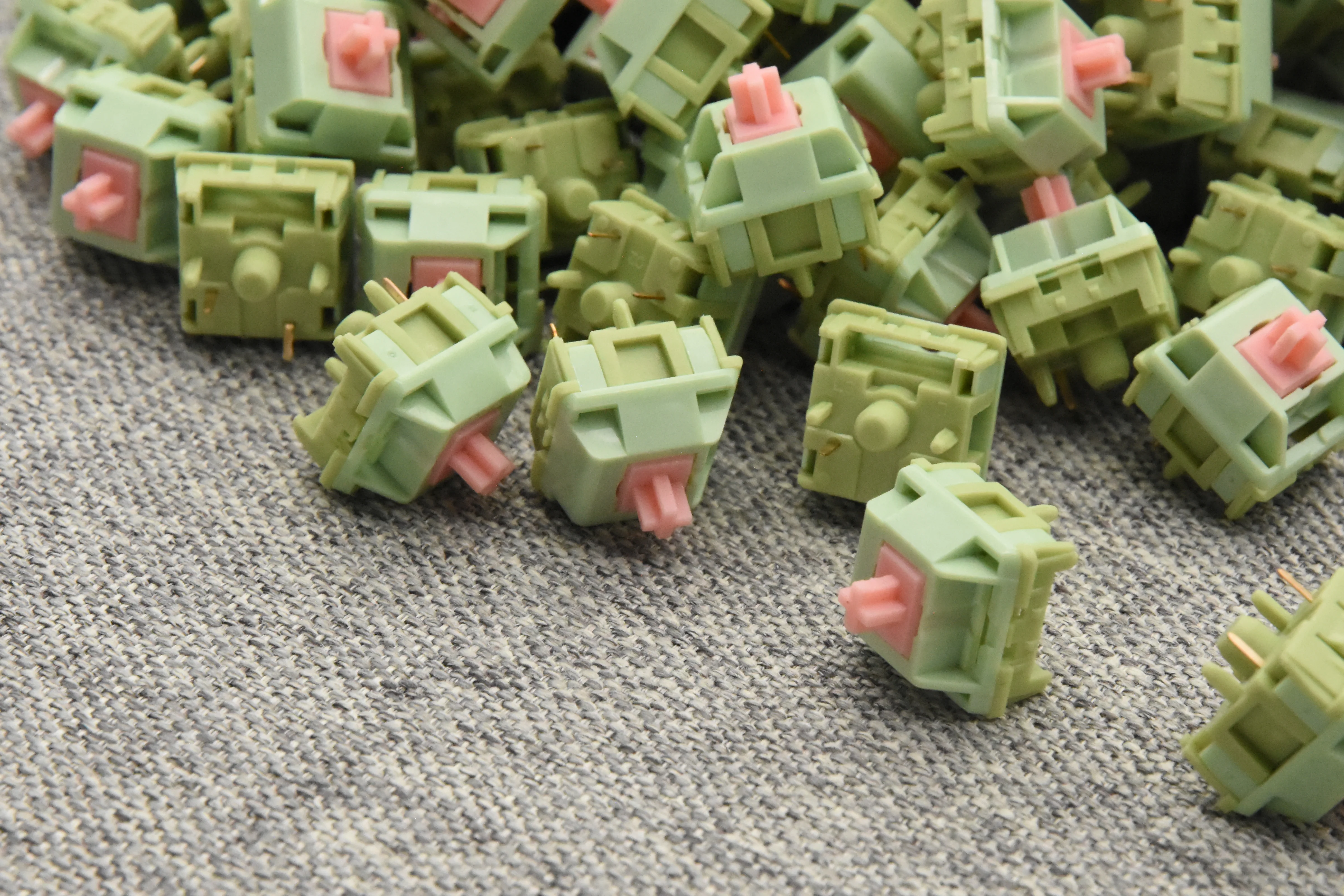

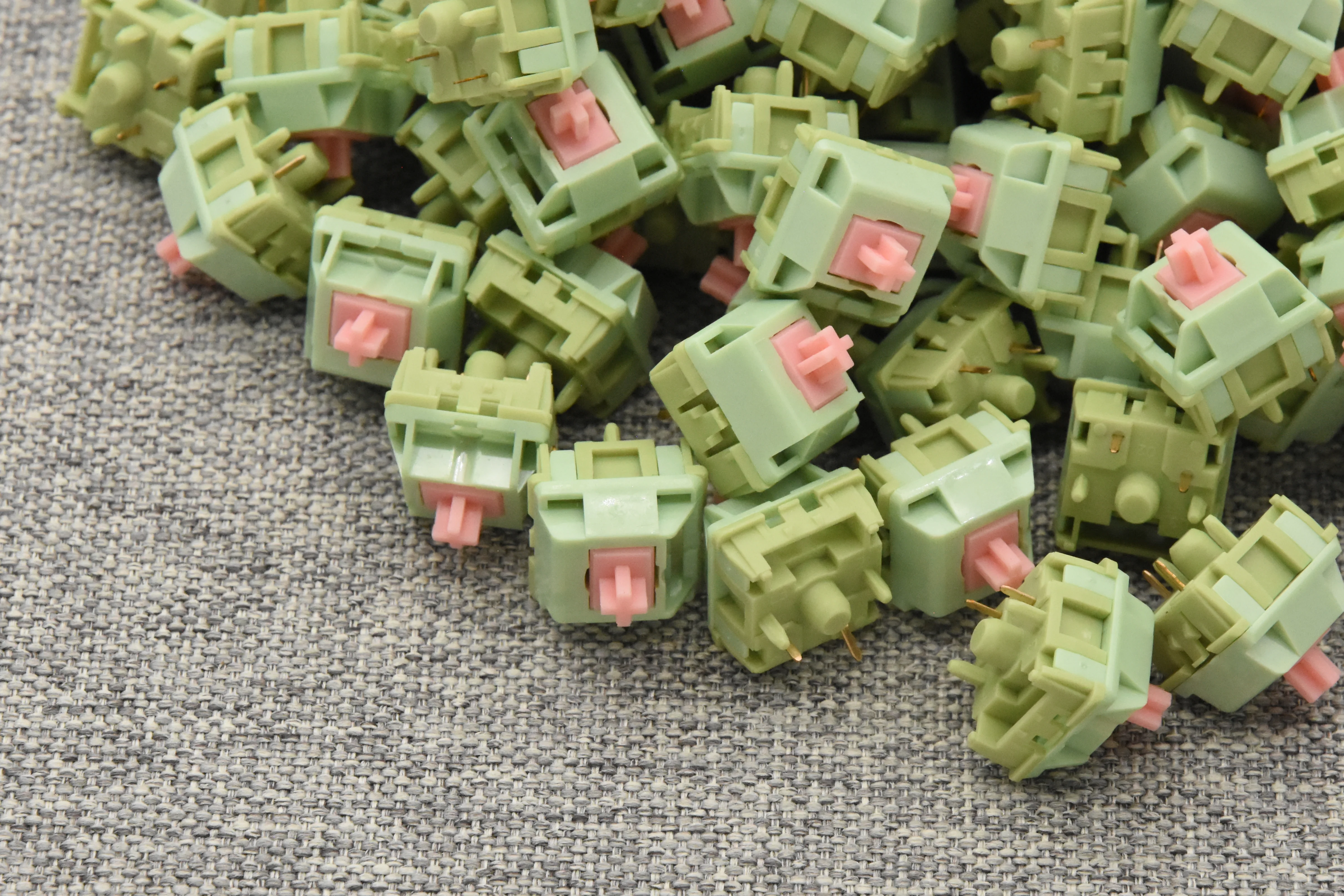

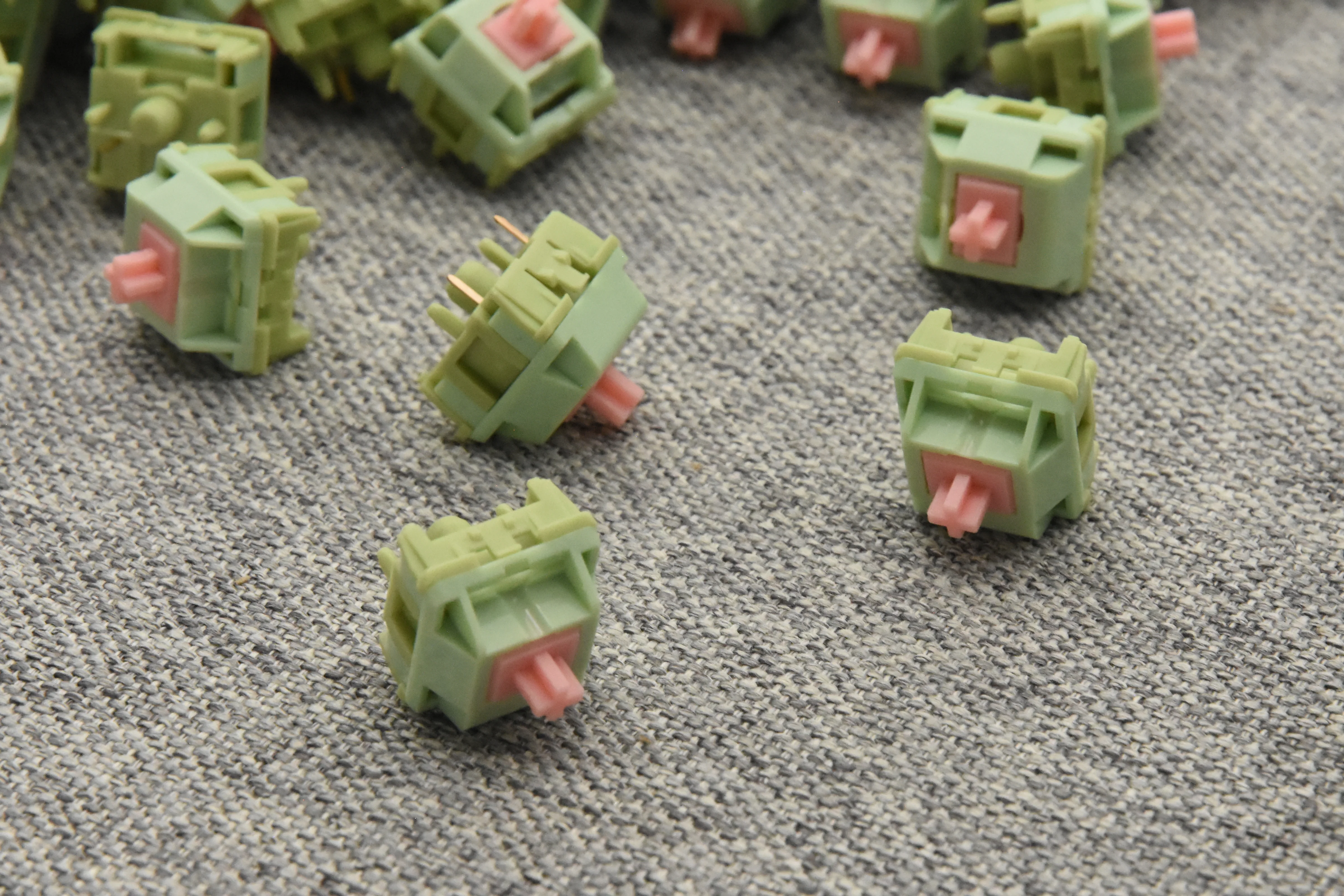

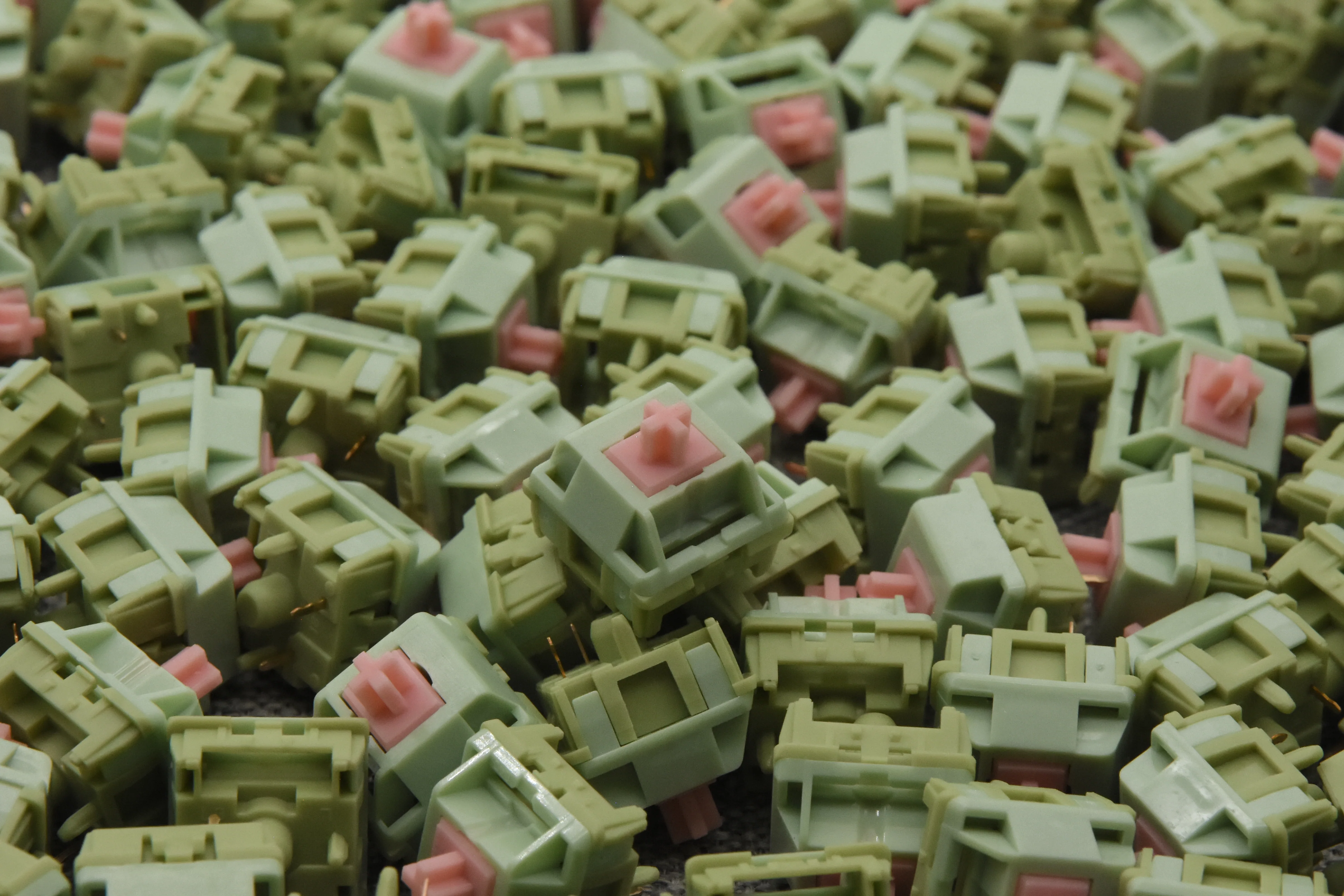

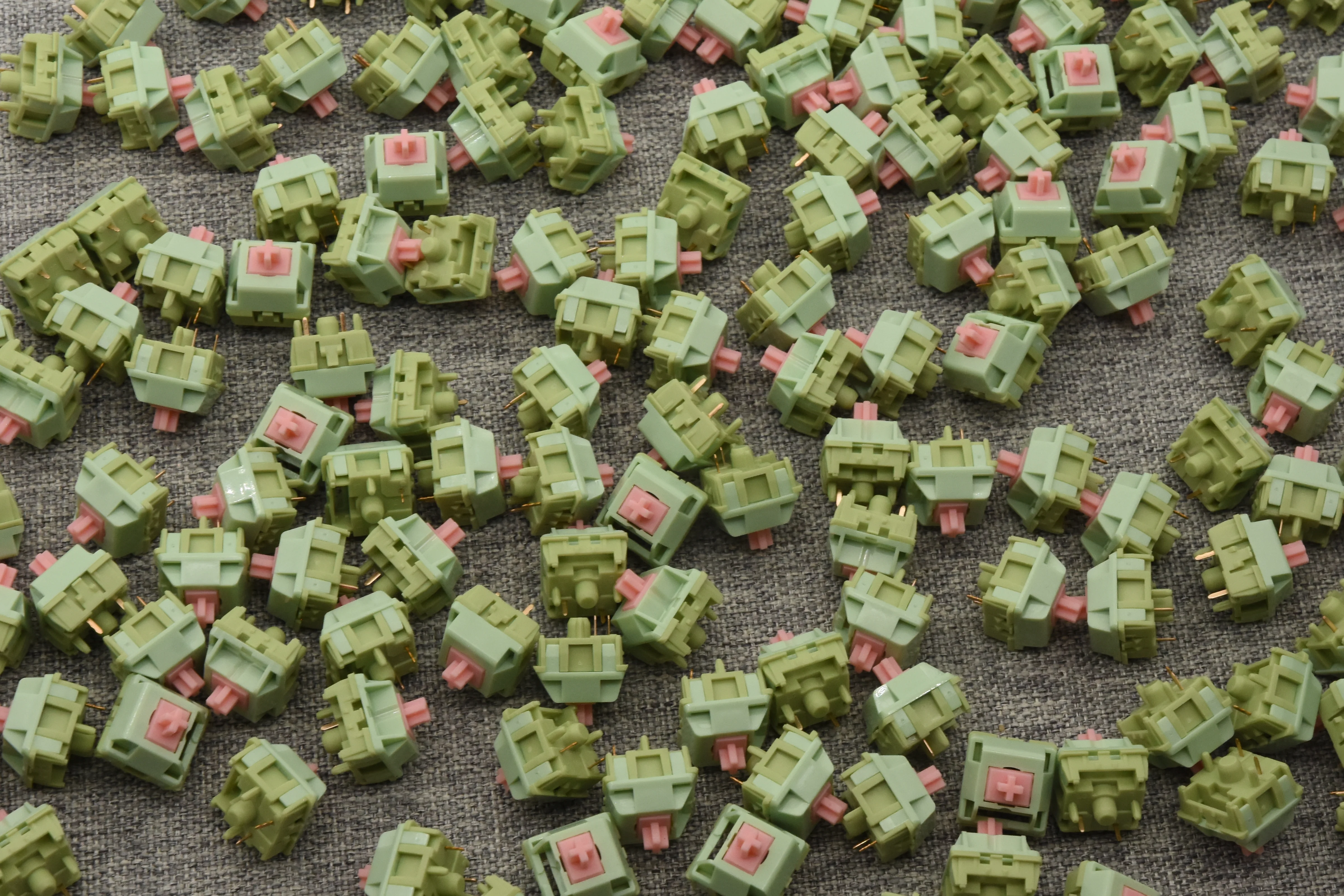

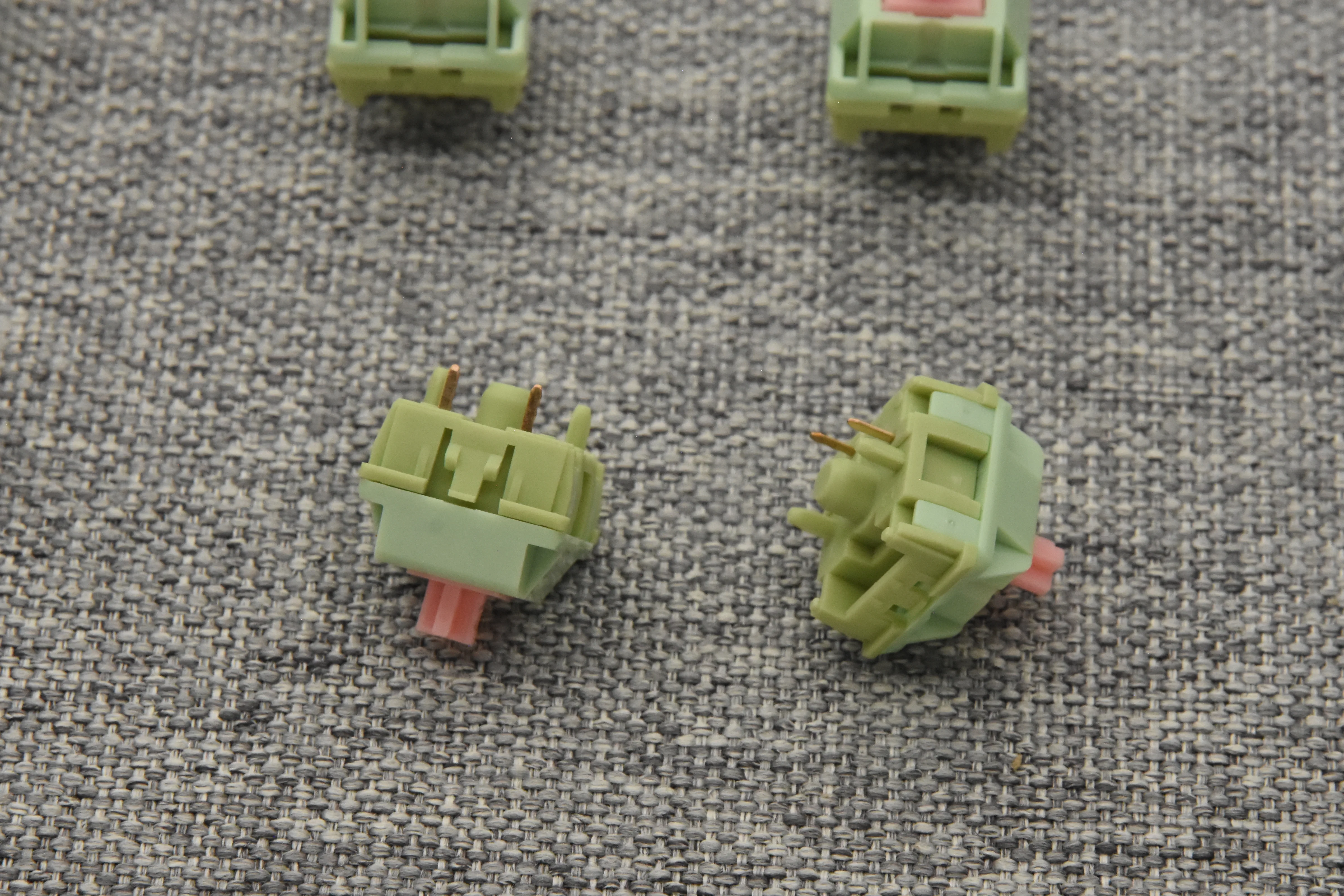

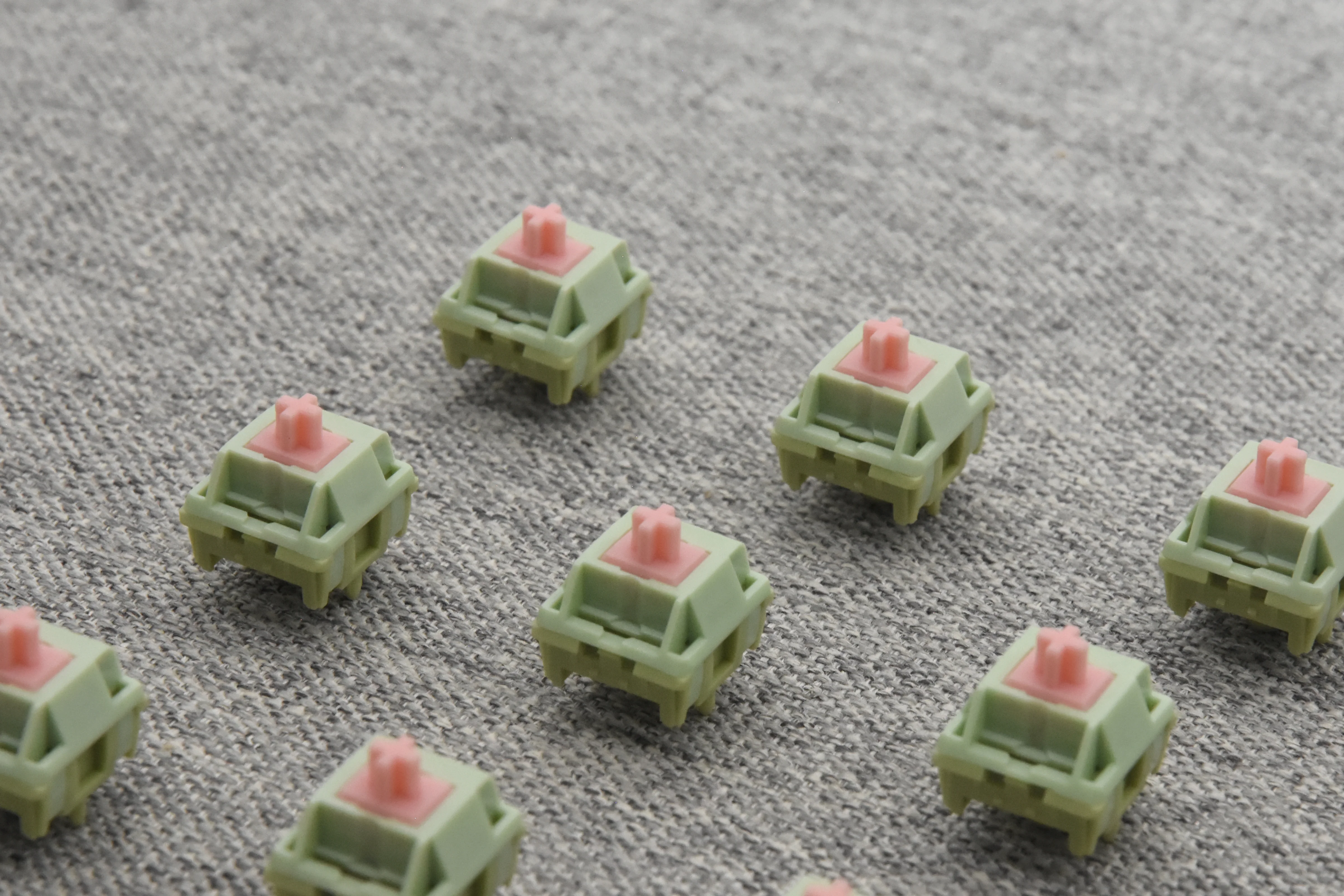

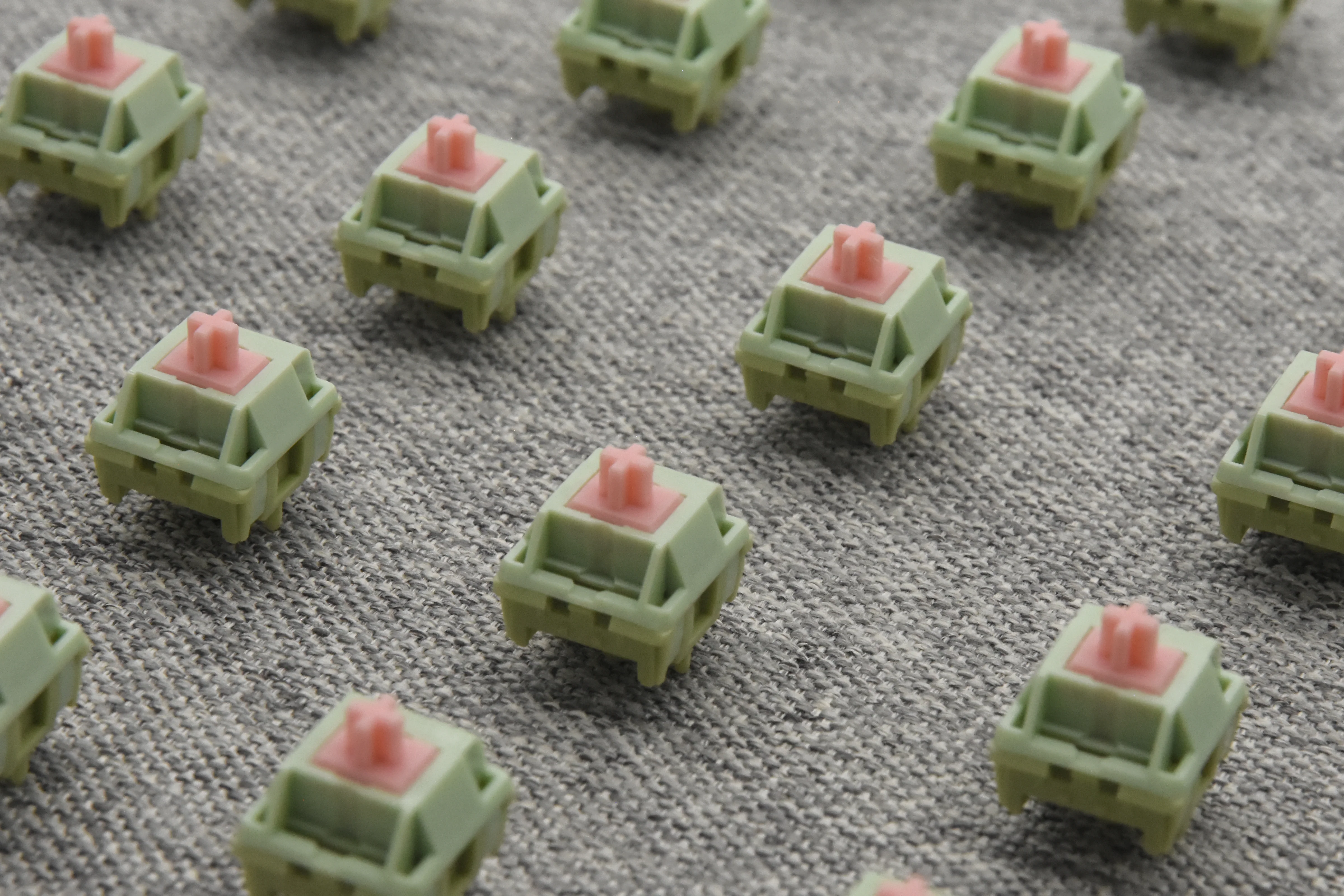

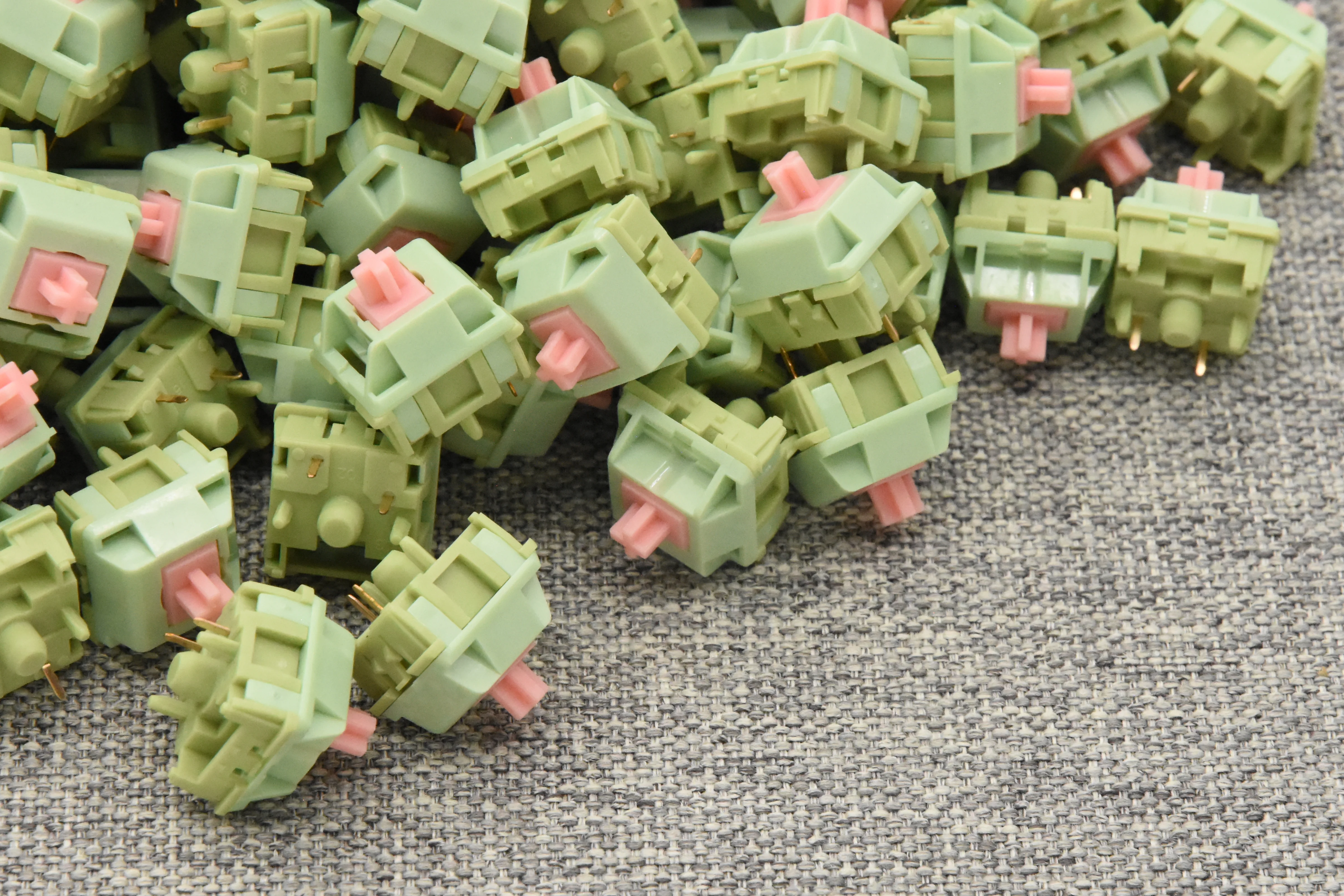

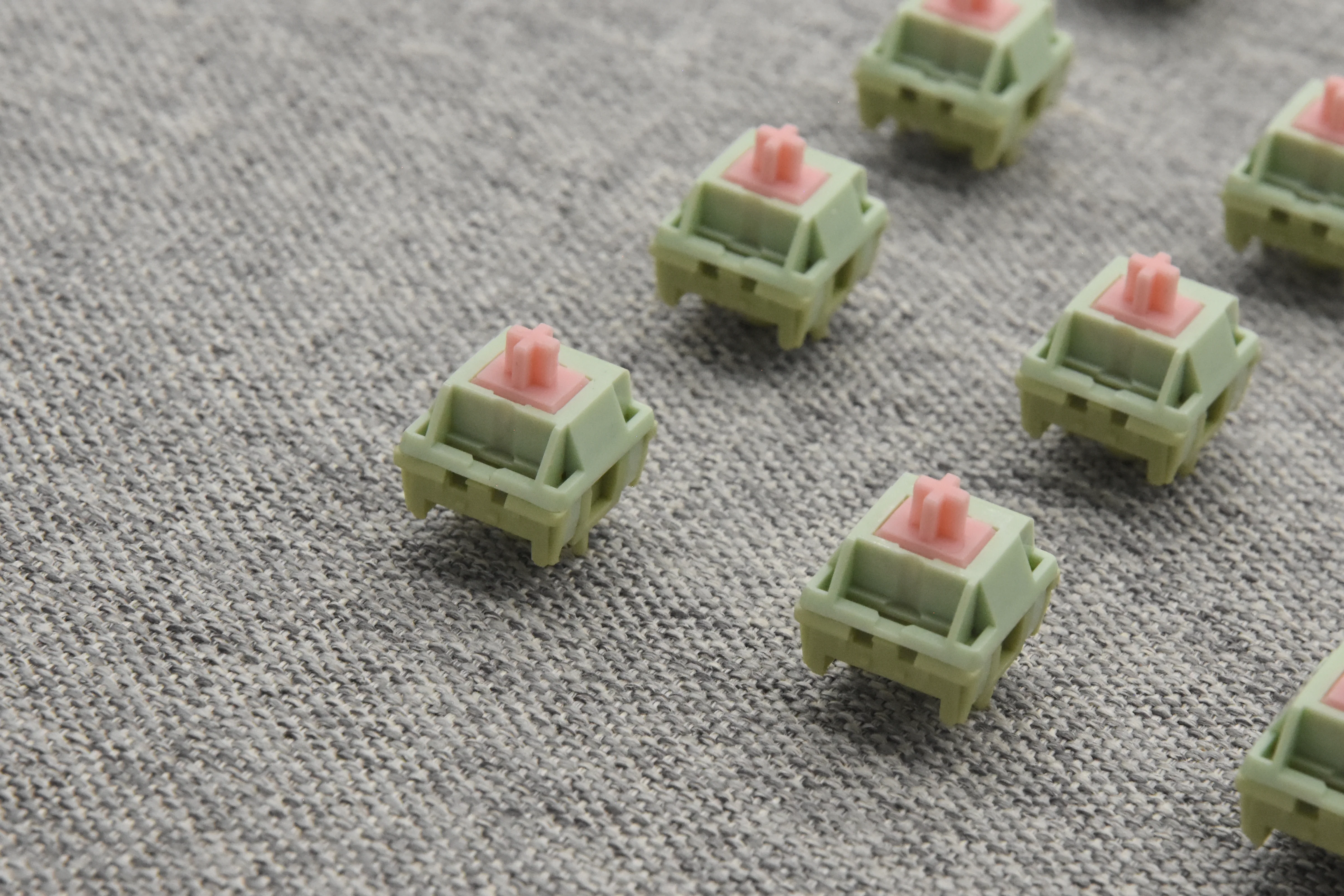

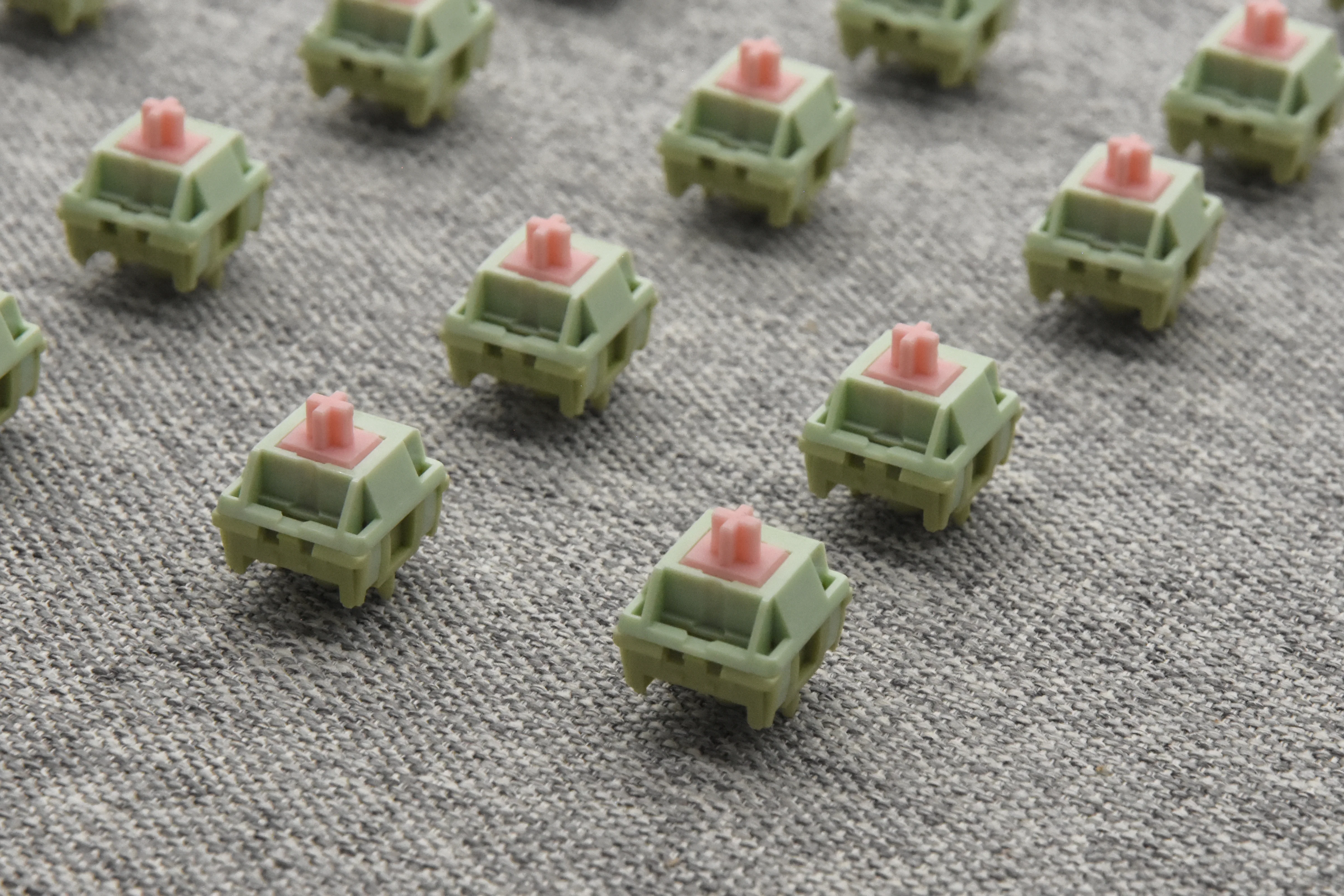

HMX GUAVA LINEAR SWITCH FACTORY LUBED EDITION (10PCS)
This is HMX's first attempt at trying the HPE material. HPE is high-density polyethylene, and when used to make keyboard switches, they are one of the go-to stem materials if the goal is to create a deeper bottom-out sound. With the PA66 bottom housing (no fiberglass) and PA12 top housing, the Guava switch sounds deep overall, but the typing feel won't be soft.
1 quantity = 10 switches
Switch Type: Linear
Manufacturer: HMX
Stem material: HPE
Top Housing: PA12
Bottom Housing: PA66
Operating Force: 45±2g
Bottom-out Force: 53±2g
Pre-travel: 2.0mm
Total Travel: 3.8±0.2mm
Spring: 20mm KOS single-stage extended
Factory Lubed: Yes! mixed GPL105&GPL205 on leaf spring, stem feet, and bottom housing rails.
