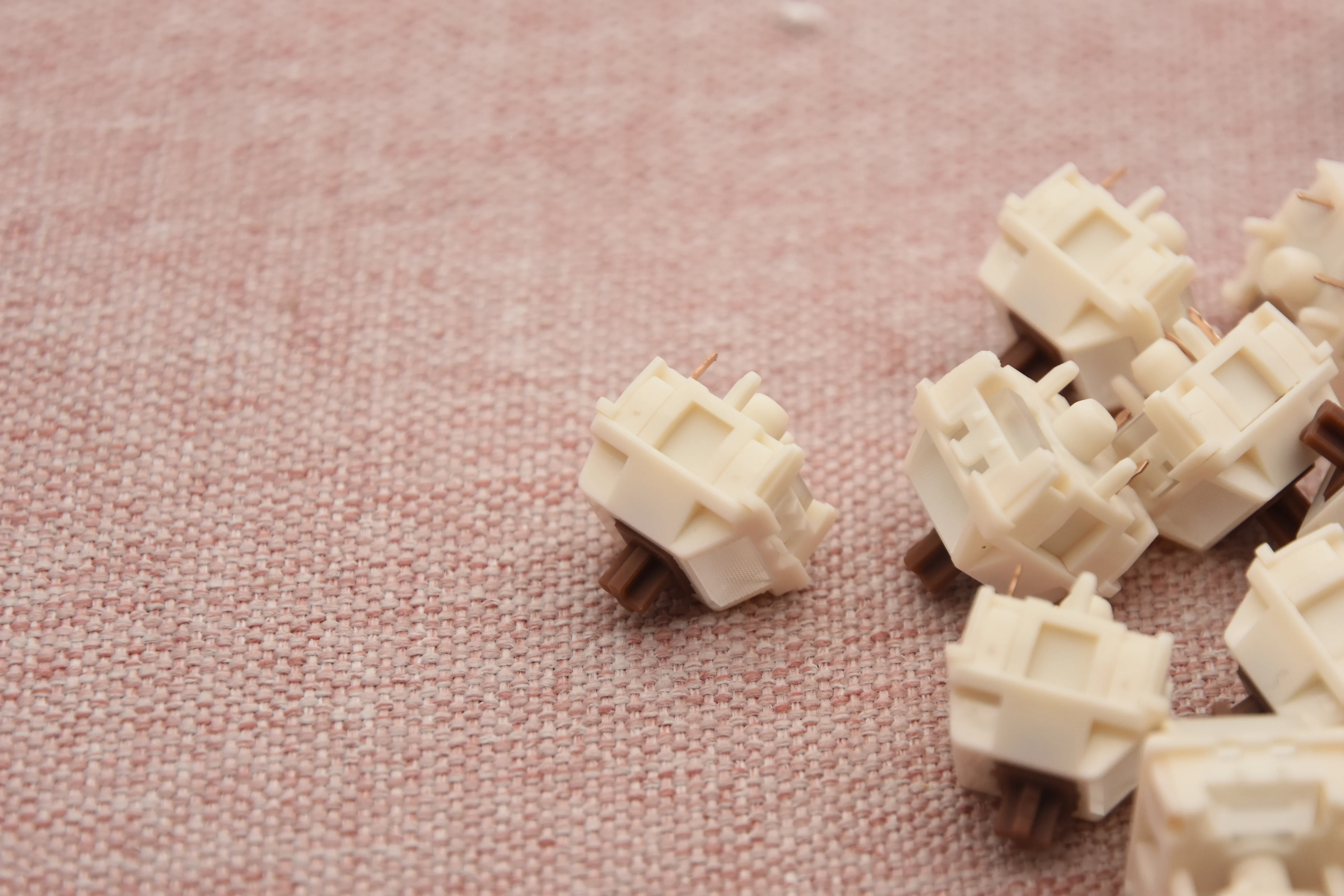

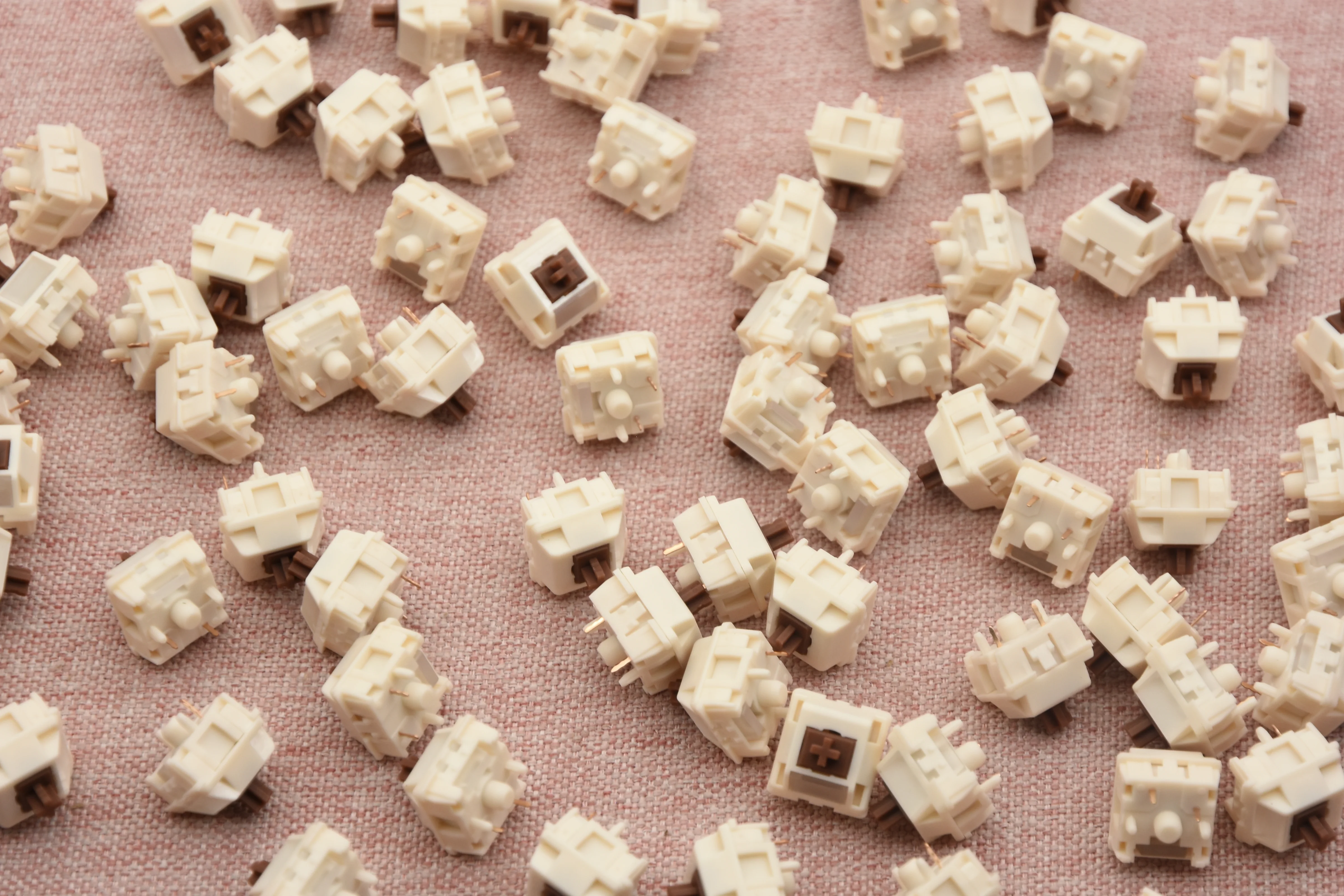

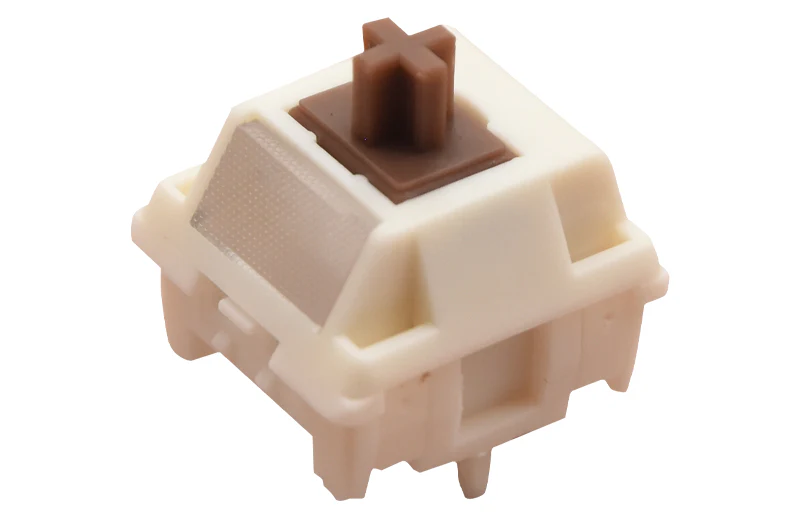

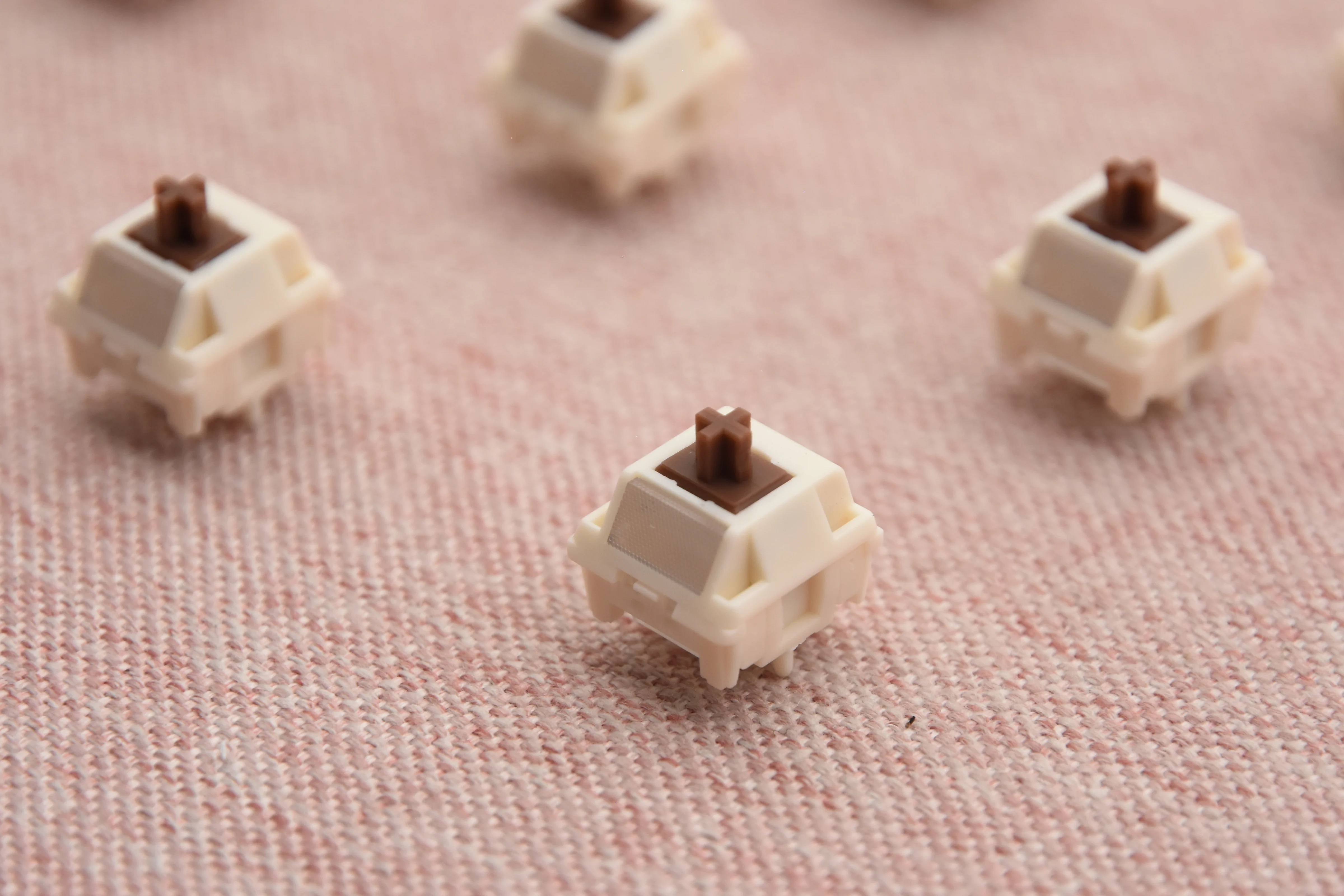

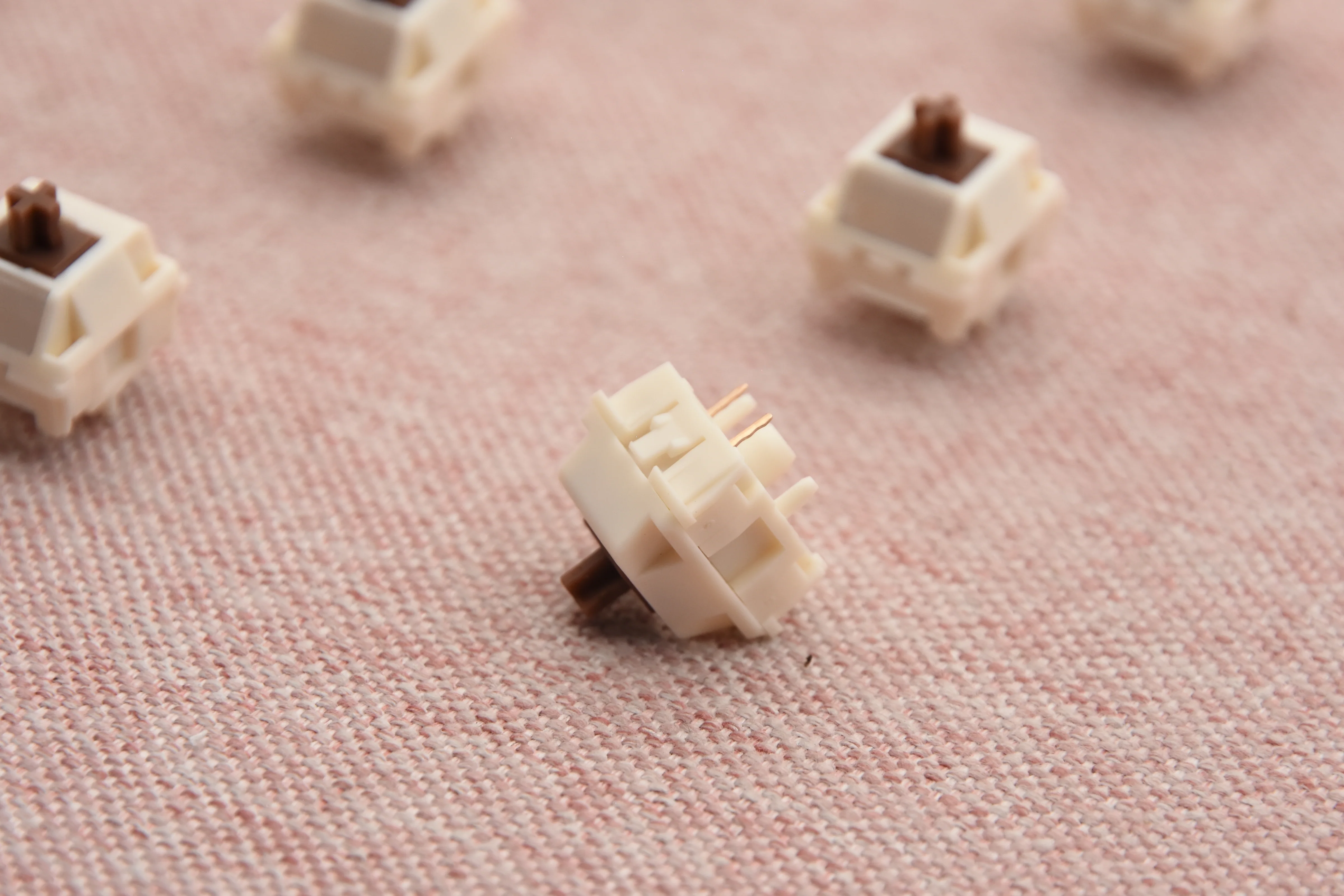

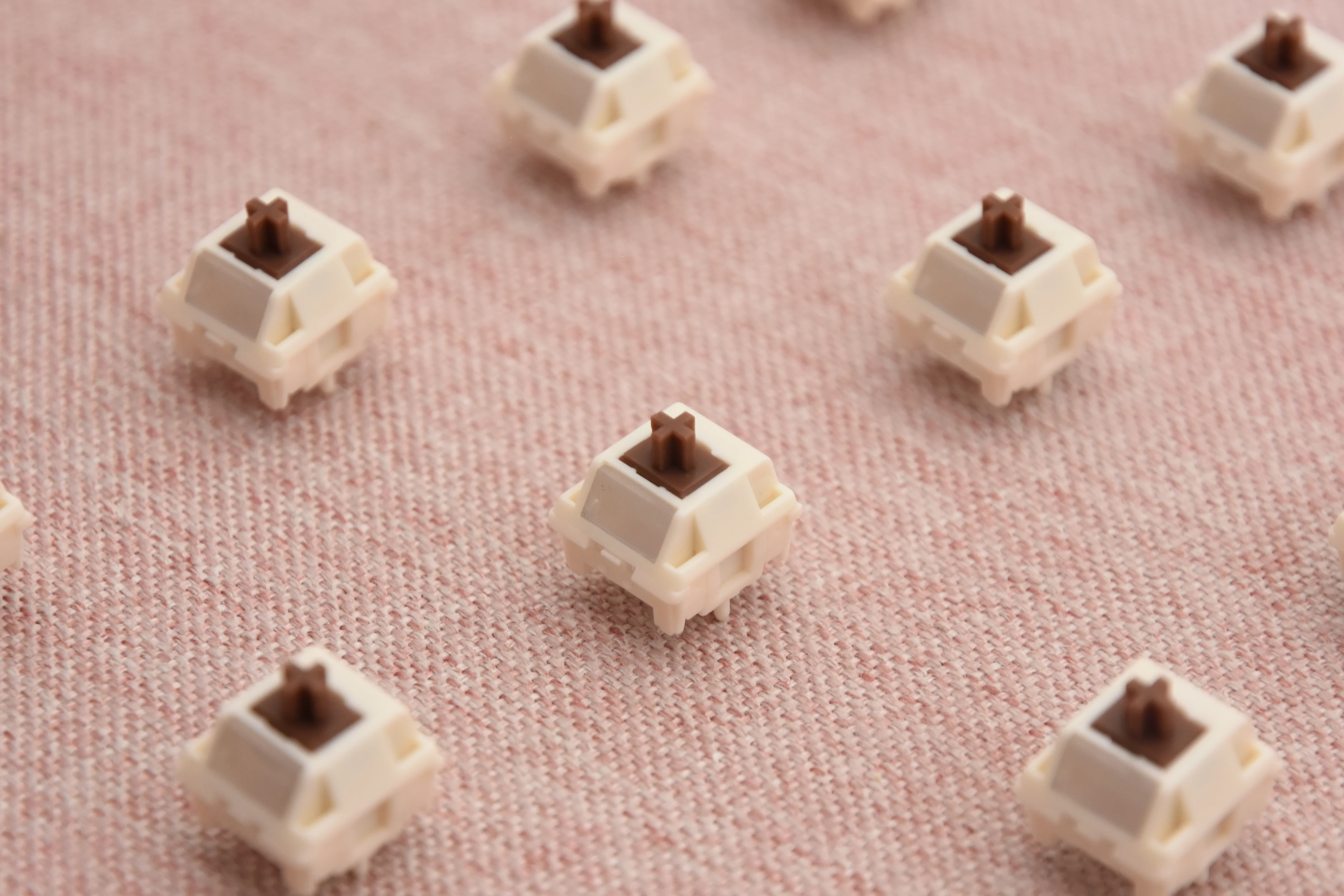

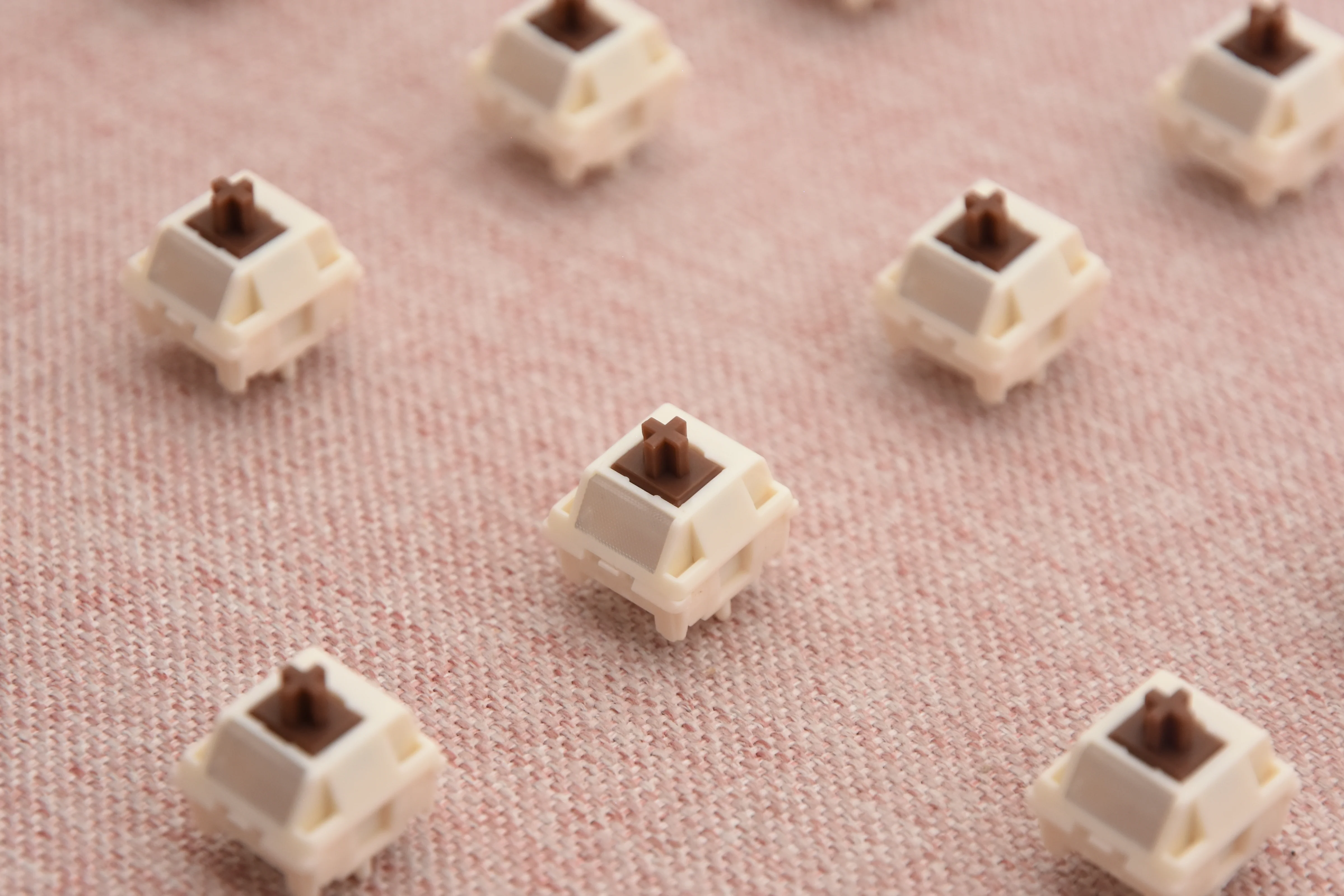

HMX CARAMEL PUDDING V2 LINEAR SWITCH FACTORY LUBED (10PCS)
HMX Caramel Pudding V2 Linear Switch – Creamy, Thocky Upgrade with Waffle Stem Design
The HMX Caramel Pudding V2 Linear Switch is a full evolution over V1, bringing meaningful upgrades in both mold design and sound performance. Most notably, it introduces HMX’s first-ever waffle stem tip design, engineered to enhance acoustics and deliver a rich, thocky and creamy typing experience.
Sound Profile: Thocky, Creamy, and Balanced
At the core of the Caramel Pudding V2 is a carefully tuned material combination:
- H1 Stem (Soft Material): Reduces harshness and eliminates unwanted clacky tones
- P4 Bottom Housing (PA66 Blend + Fiberglass): Enhances volume and adds a slightly poppy resonance
Together, these materials create a balanced medium-pitched thock, offering a smooth and satisfying bottom-out without excessive sharpness. Perfect for enthusiasts looking for a creamy linear switch with depth and character.

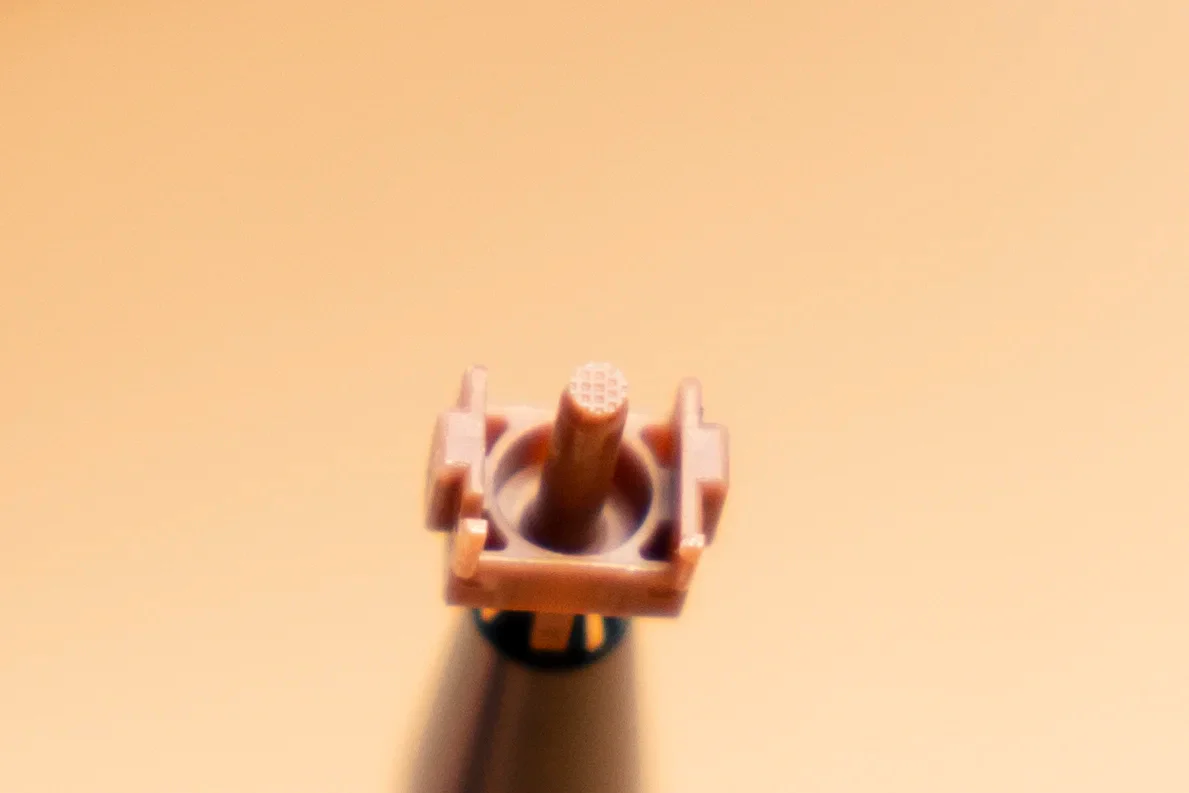

Innovative Waffle Stem Tip Design
The newly introduced waffle-style stem tip improves contact dynamics between the stem and housing, helping produce a fuller, more controlled sound signature. This design is a key factor behind the switch’s distinctive thocky acoustic profile.
HMX Gen 3 Factory Lubing – Smooth Out of the Box
Caramel Pudding V2 is also the first switch to feature HMX’s third-generation factory lubing process. Lubrication is precisely applied to:
- Stem legs
- Slider rails
- Contact points
FYI: The Caramel Pudding V2 is also the first switch that uses HMX's third-generation factory lubing process. The lube is precisely applied to the stem legs, sliders, and contact point to prevent overlube.
Specs:
1 quantity = 10 switches
Switch Type: Linear
Designer: Lucky Pudding Studio
Mold: New (L3)
Manufacturer: HMX

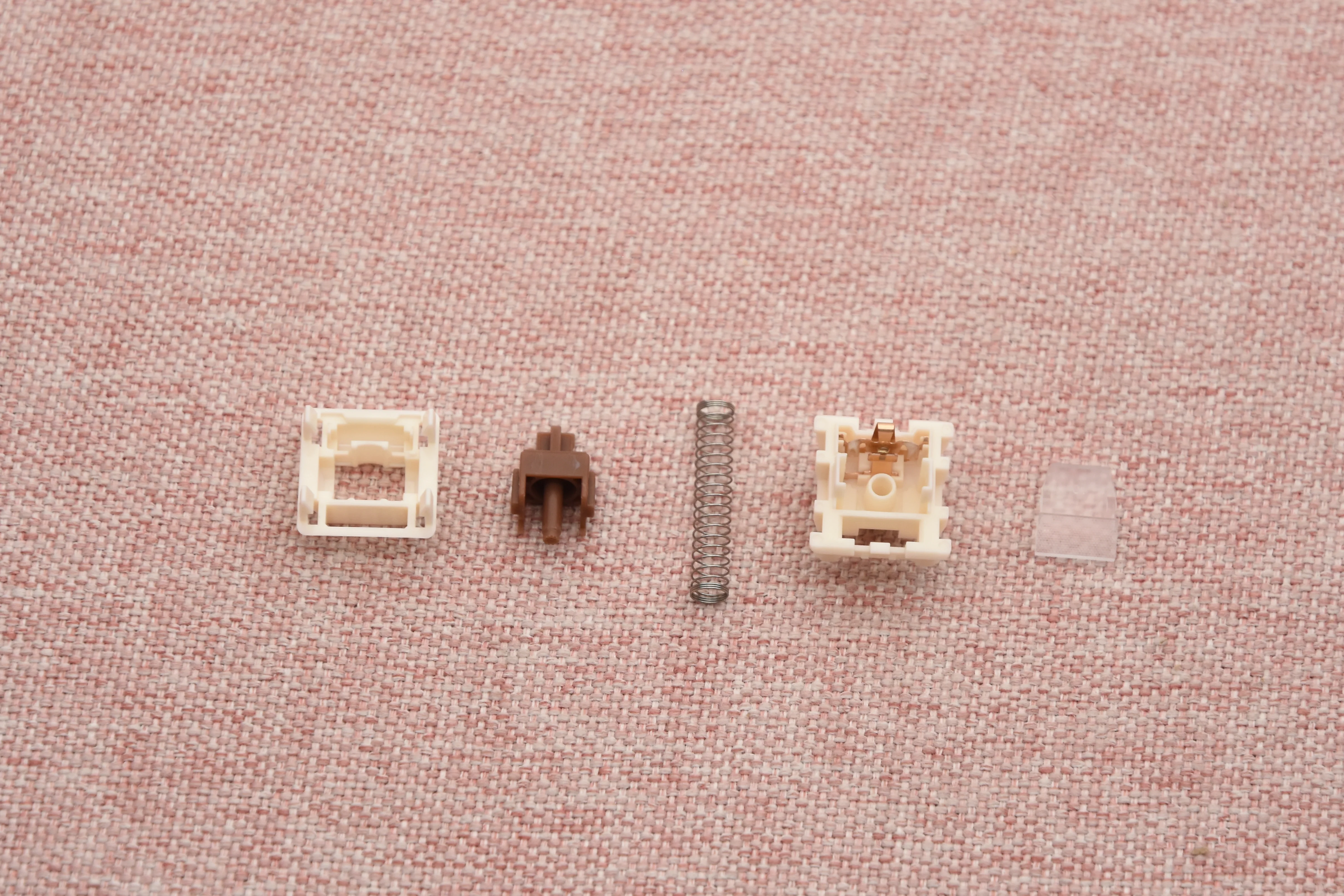

Stem material: H1 (Waffle Stem Tip)
Top Housing: PA12
Bottom Housing: P4
Operating Force: 37±2g/42±2g
Bottom-out Force: 45±2g/52±2g
Pre-travel: 2.0mm
Total Travel: 3.7±0.2mm
Spring: 22mm KOS single-stage extended
Factory Lubed: Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film. Everything else is dry. There is no lube in the bottom housing or anywhere near the stem pole. The chance that these get lube pooling issue is very small.
