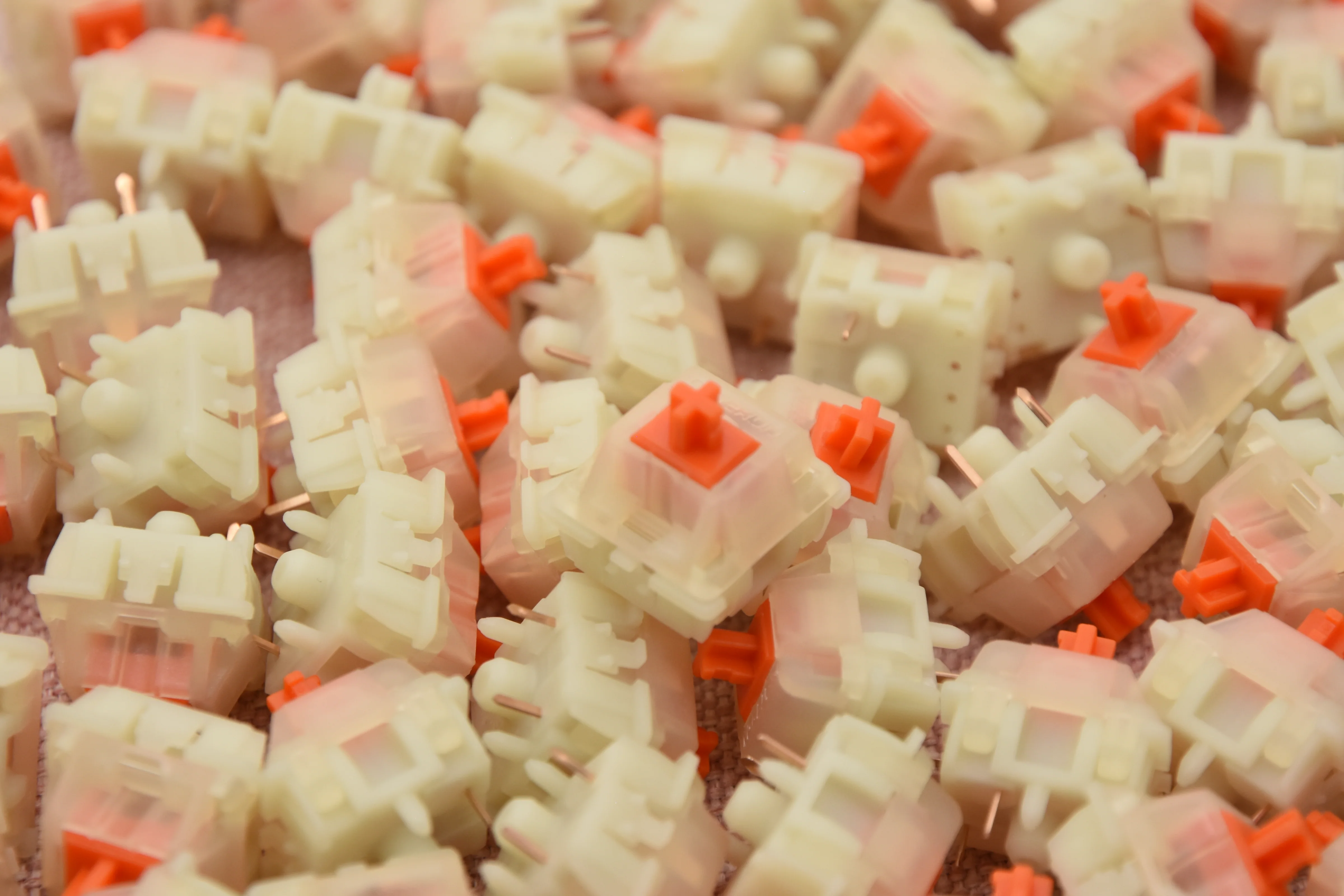

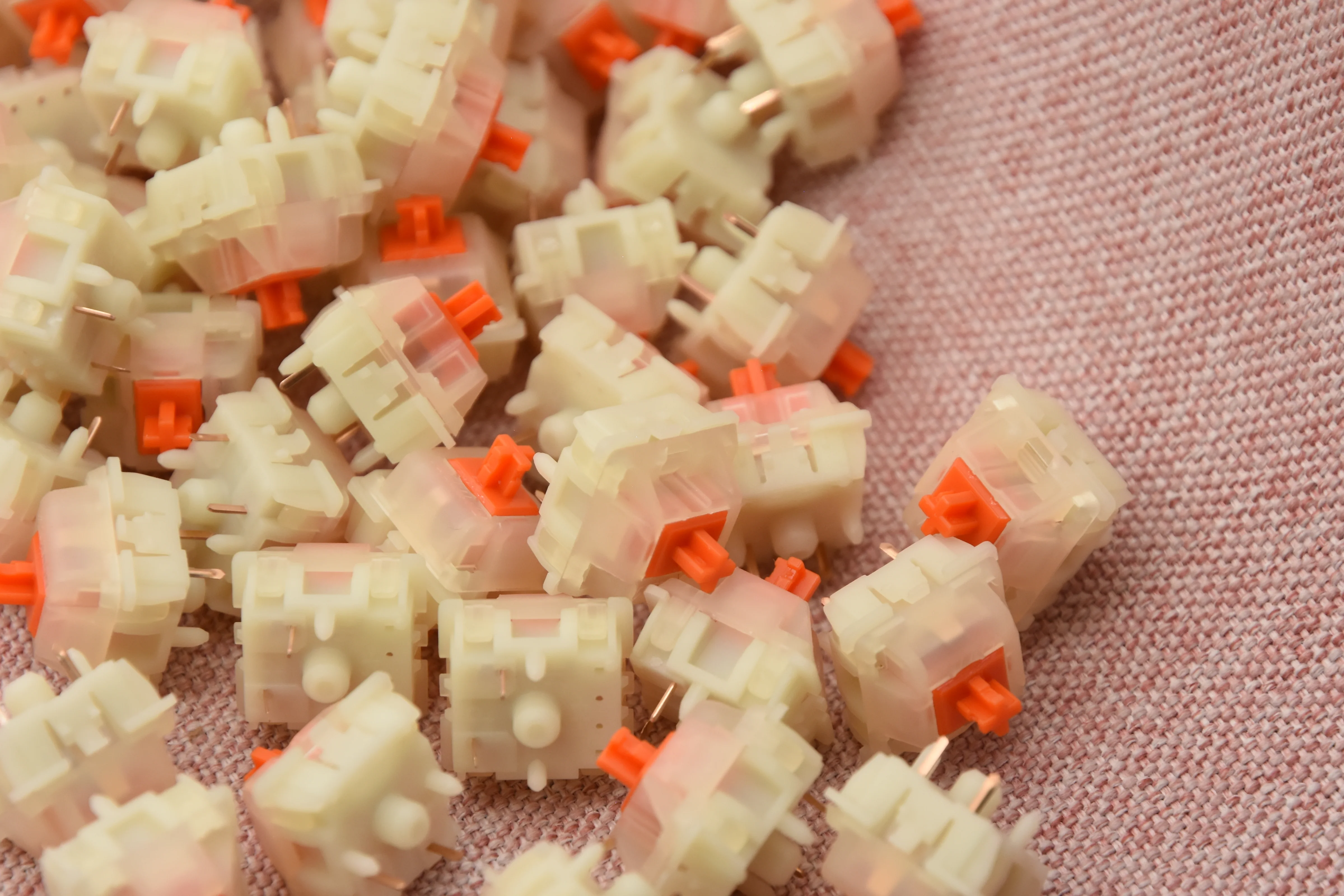

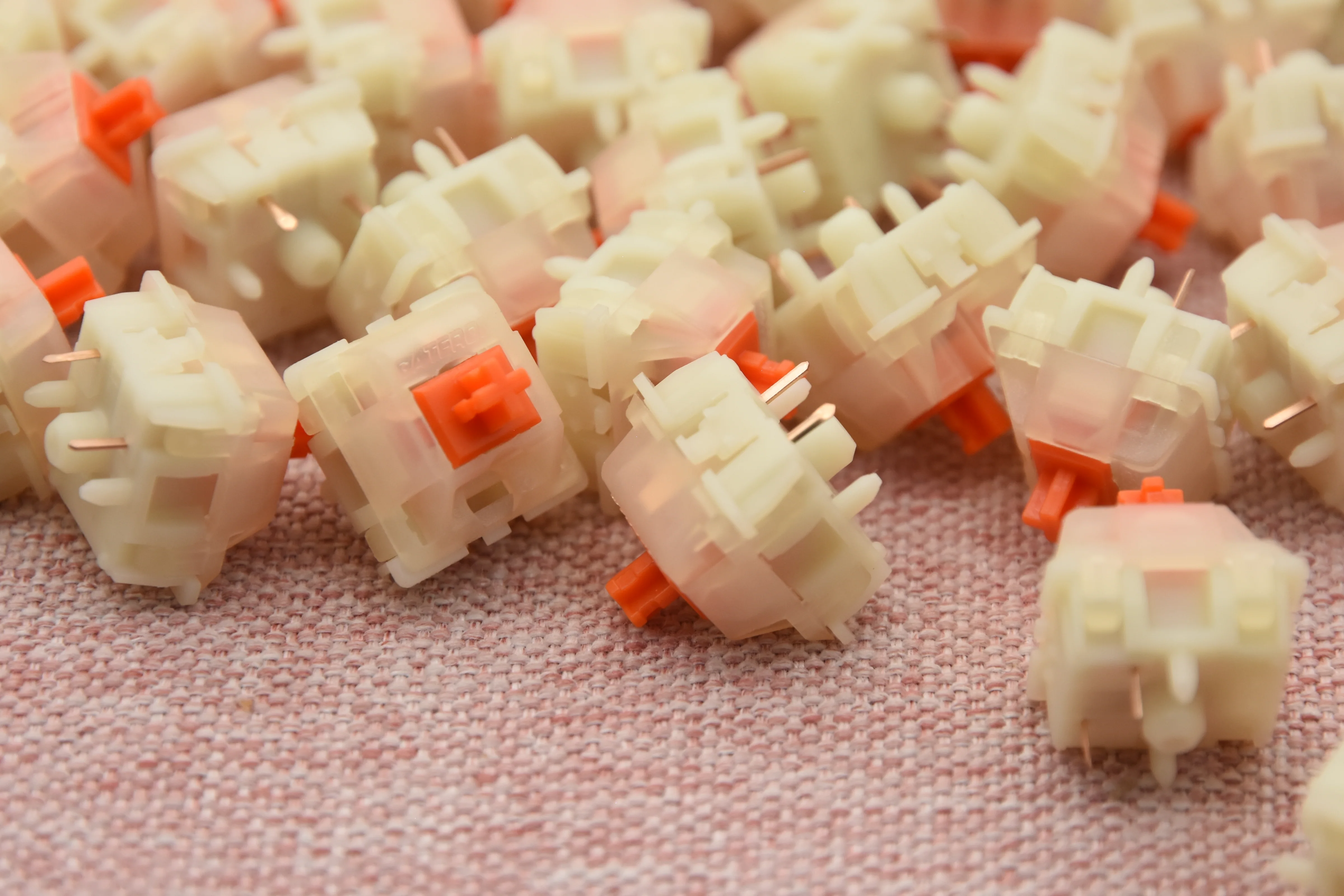

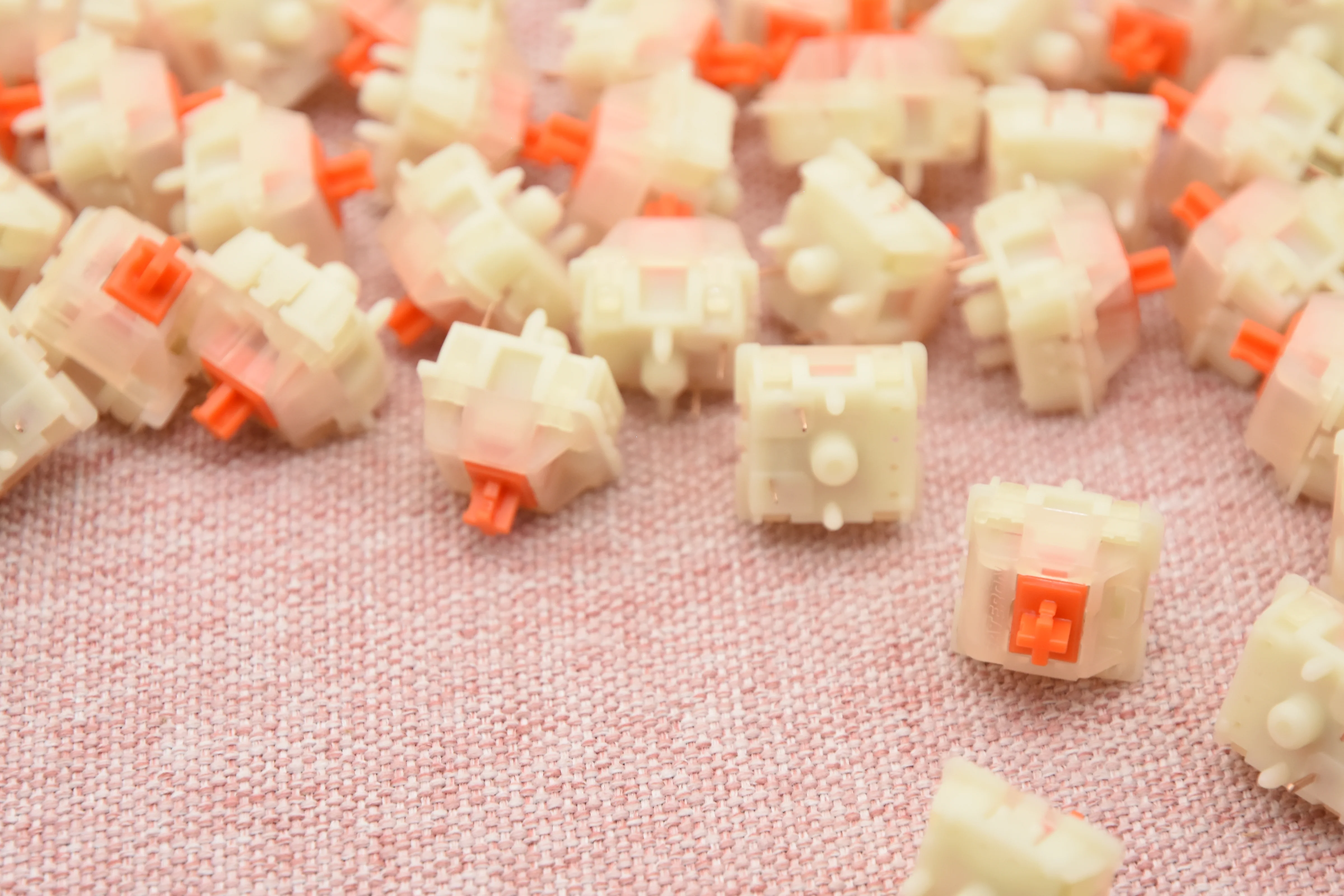

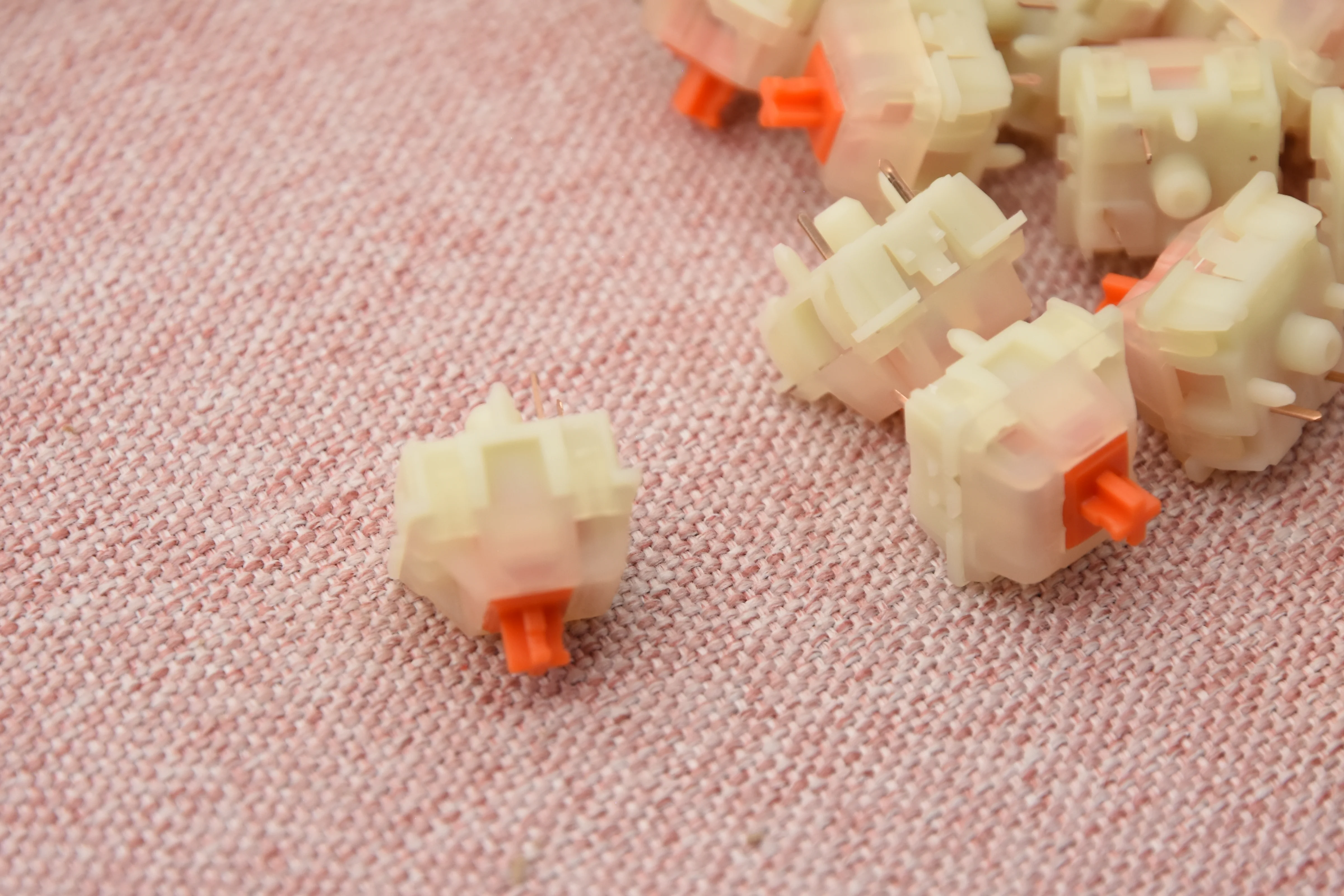

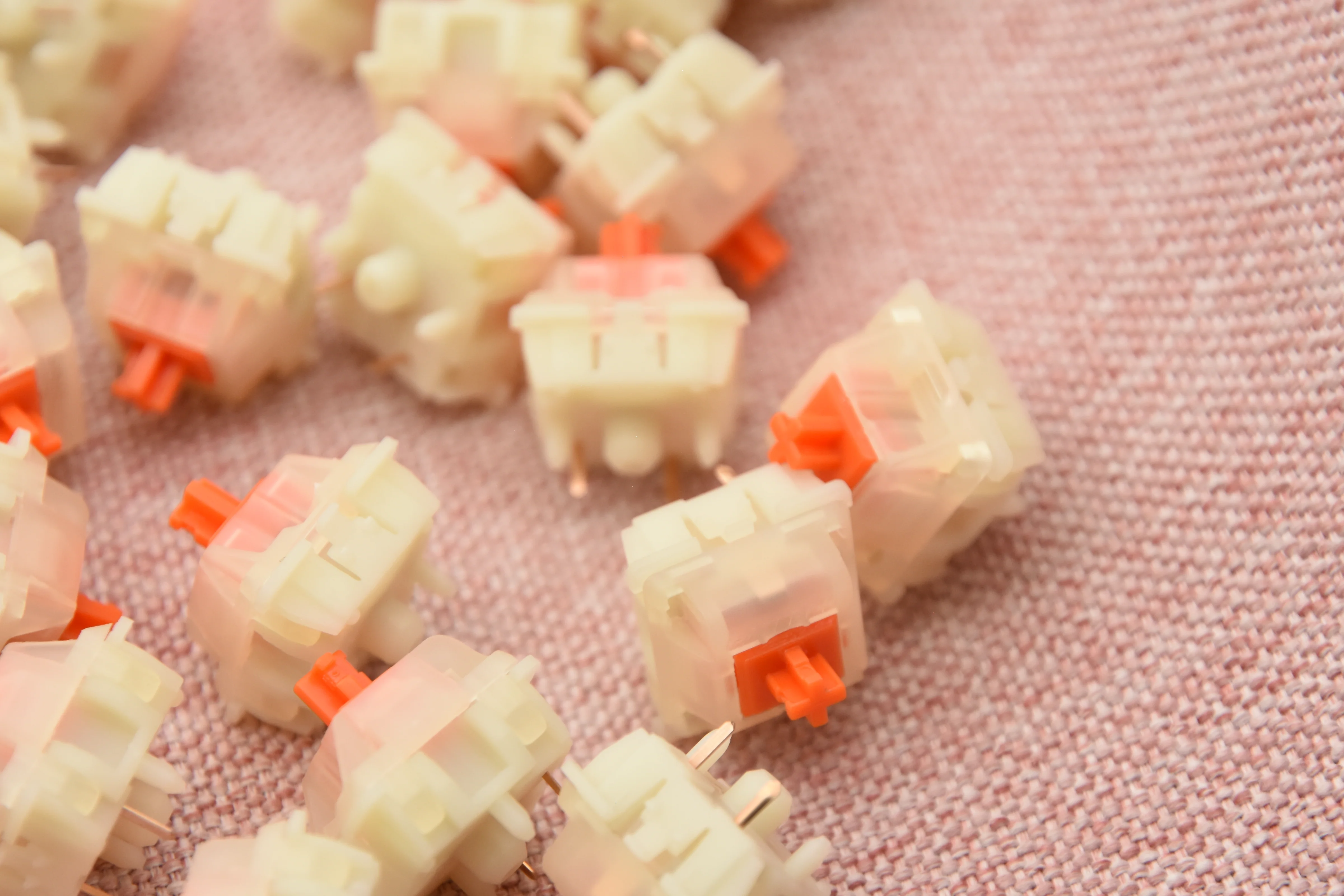

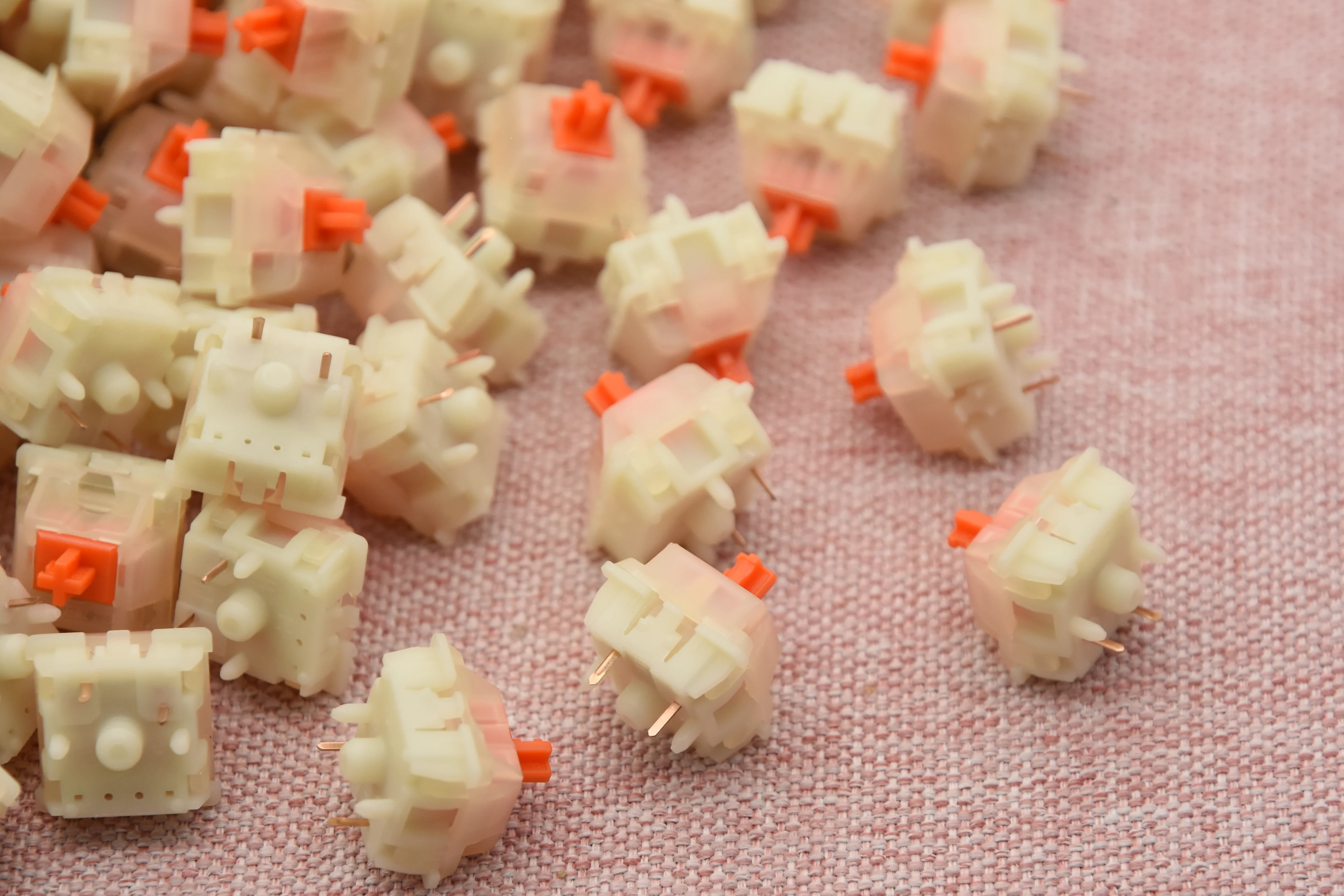

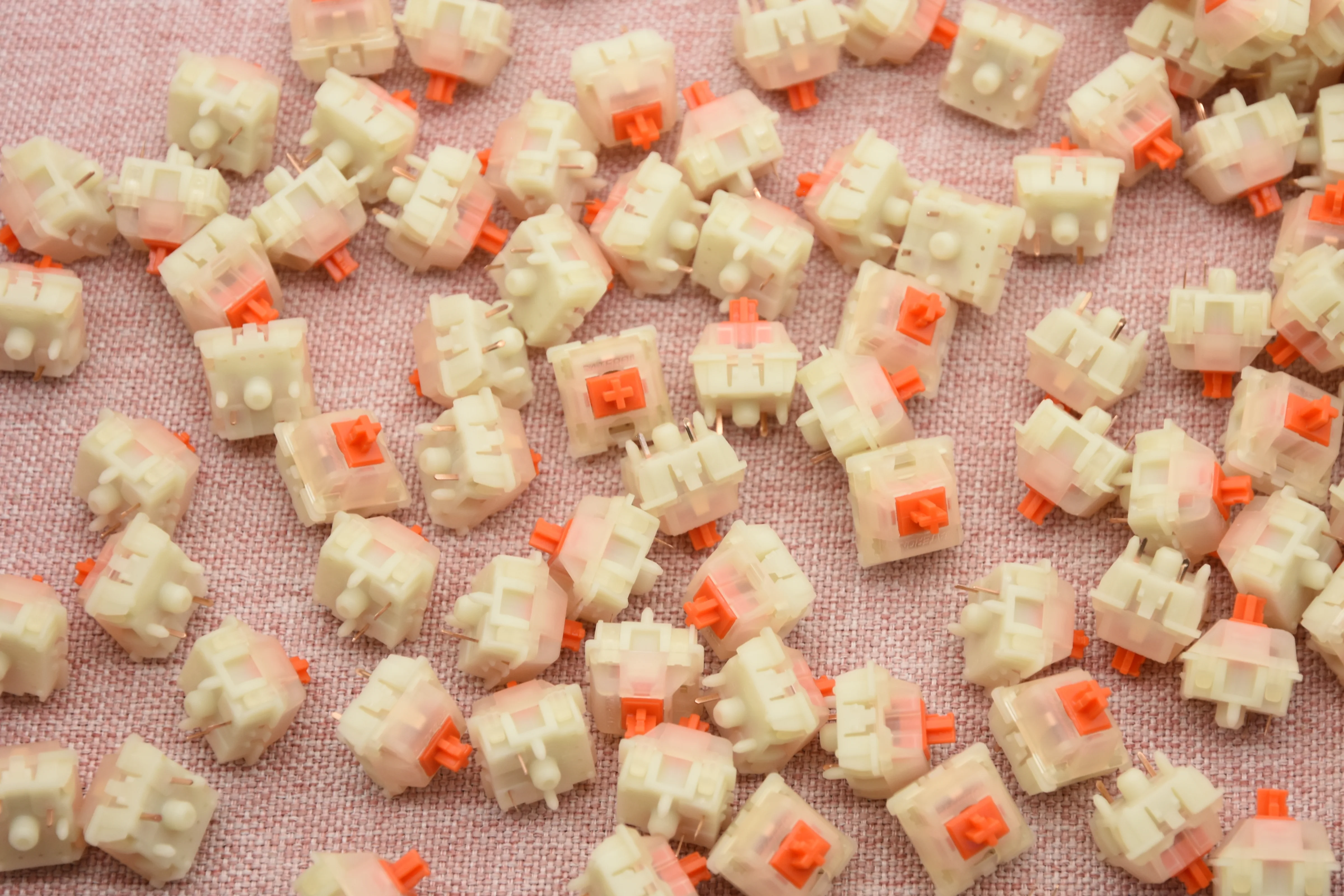

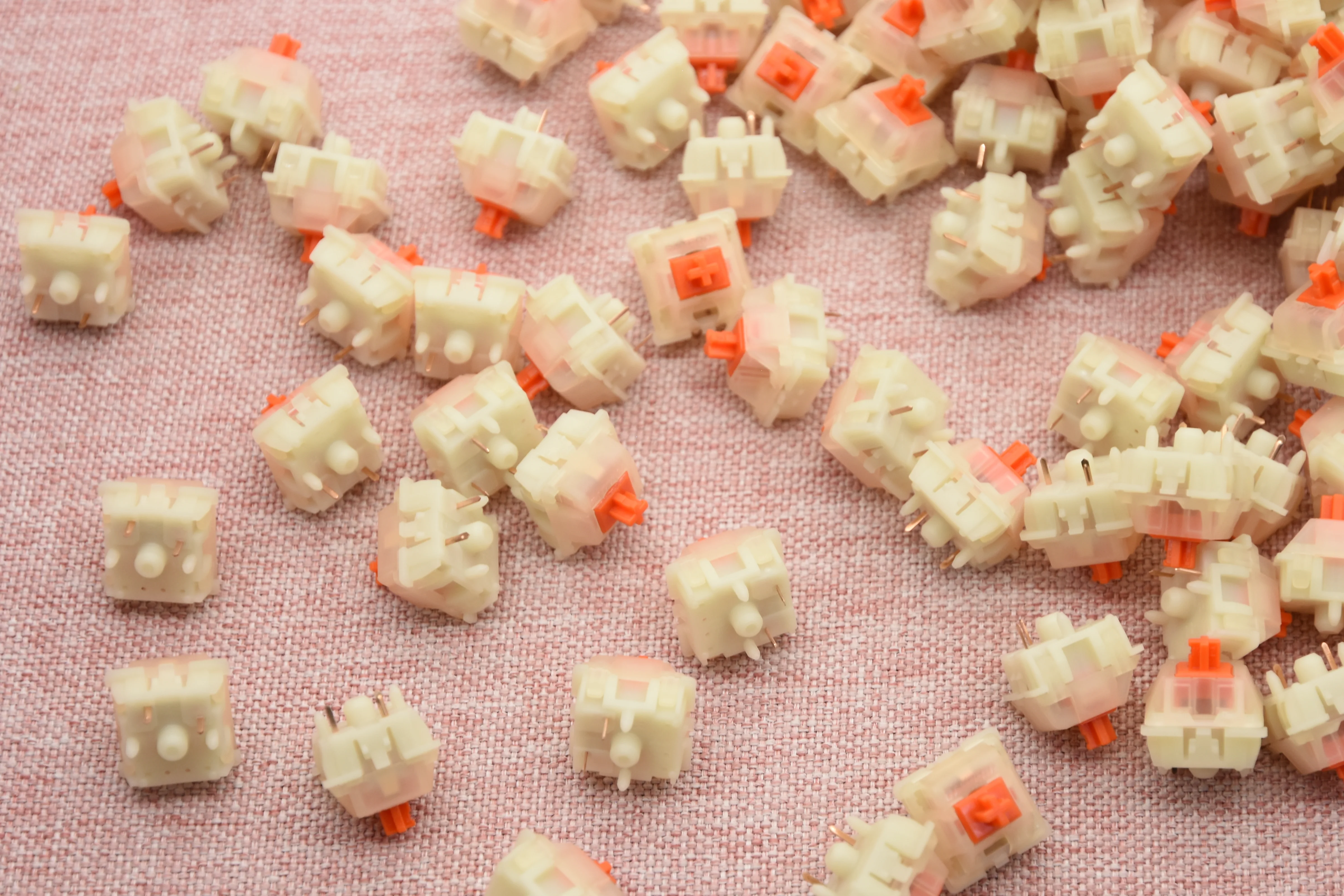

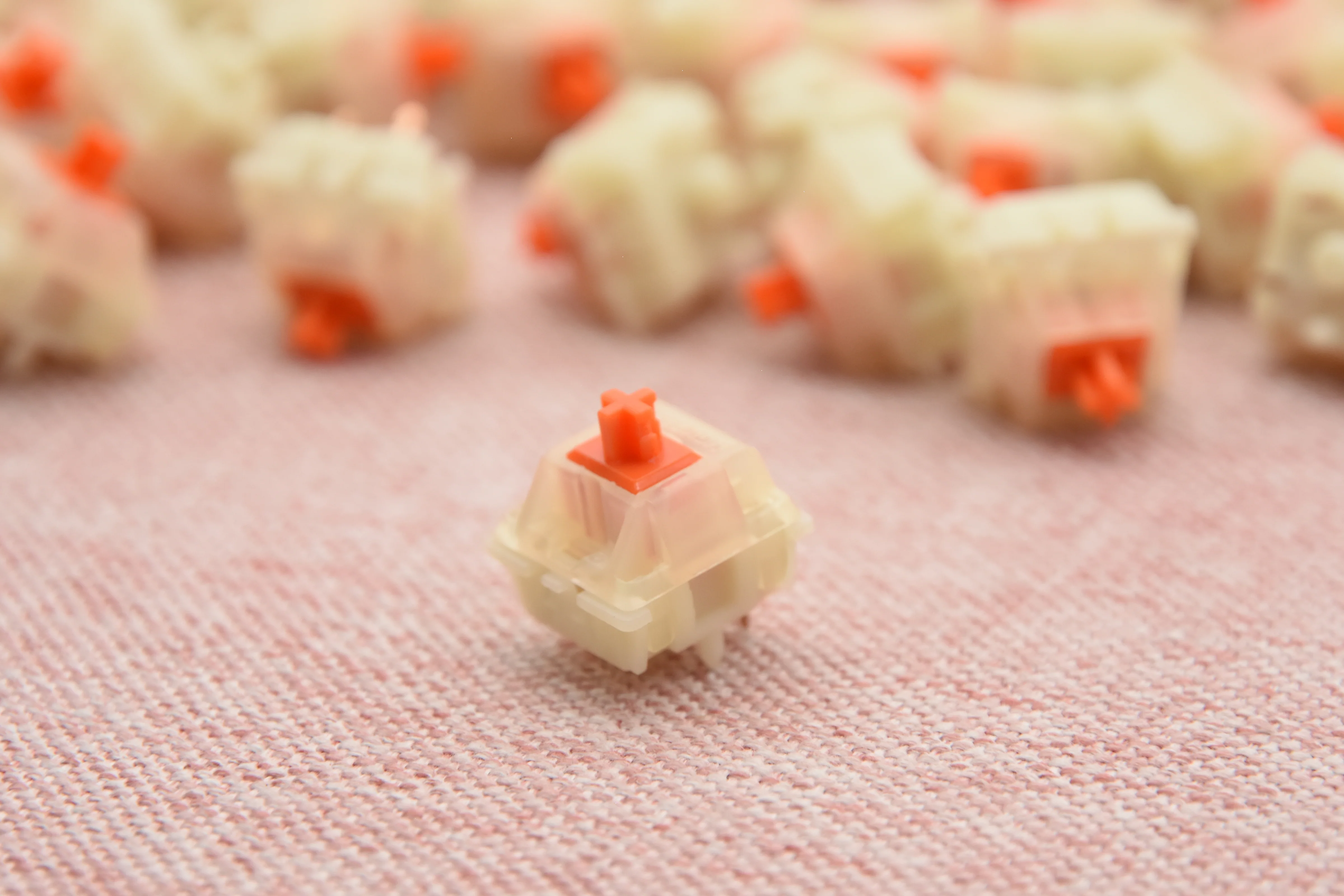

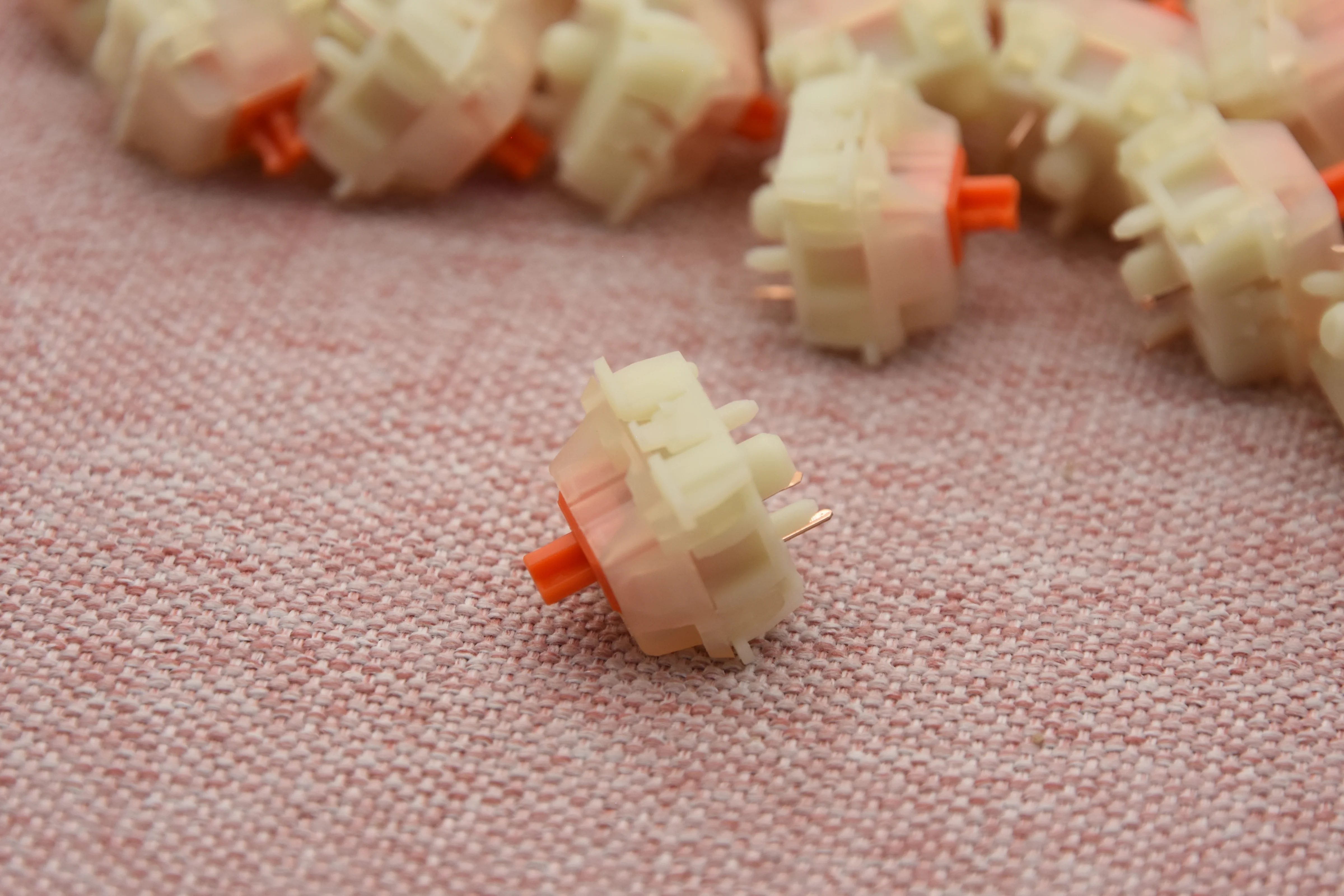

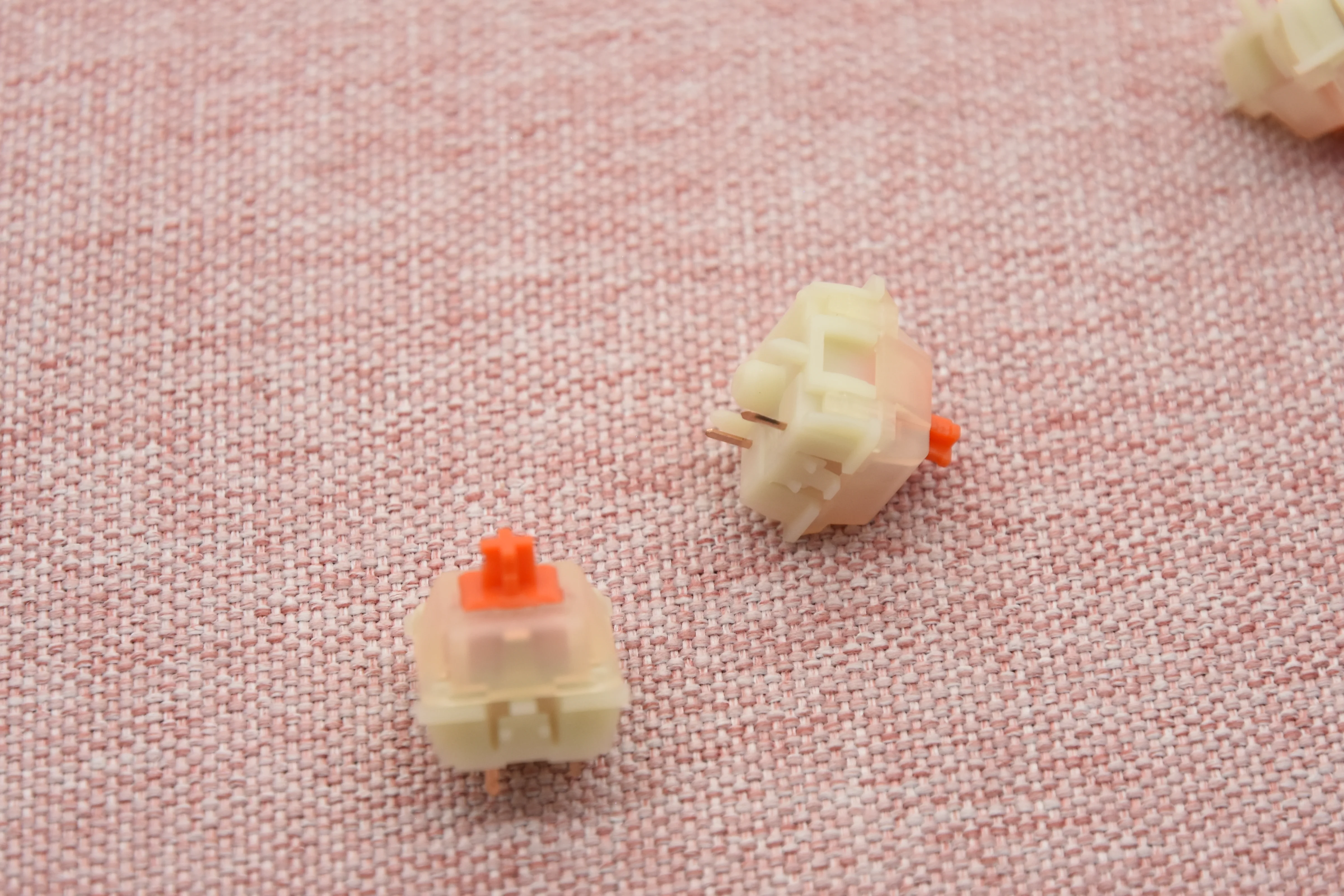

The Gateron + Linear Switch is a rail bottom-out full travel switch. On top of the Gateron classic milky housing and POM stem, Sensy requested Gateron to upgrade the leaf to match modern-day custom keyboards' PCBs, which come with 5ms of delay or less.

Furthermore, different from any other factory lubed Gateron switches, the + switch comes with a customized lubing solution: The factory lubed ones come with lubed stem legs, spring, leaf, and top housing contact points only. The stem walls and bottom housing rails are left dry to prevent lube pooling.



1 quantity = 10 switches

Switch Type: Linear

Manufacturer: Gateron

Designer: Sensy (Designer of the Seal Keyboard)

Stem material: POM

Top Housing: PA66 Milky

Bottom Housing: PA66 Milky

Operating Force: 46±2g

Bottom-out Force: 55±2g

Pre-travel: 2.0mm

Total Travel: 4.0±0.2mm

Spring: 15mm KOS double-stage extended

Factory Lubed: Optional



Modded Version:

Switch Specs:

1. Hand lubed with Krytox 3204

2. 24mm single-stage TTC springs.

3. Actuation Force: 45g

4. Bottom-out Force: 53g

5. Filmed with 0.15mm PC film
